Connector End Views
›
Data Link Connector End View
Data Link Connector End View

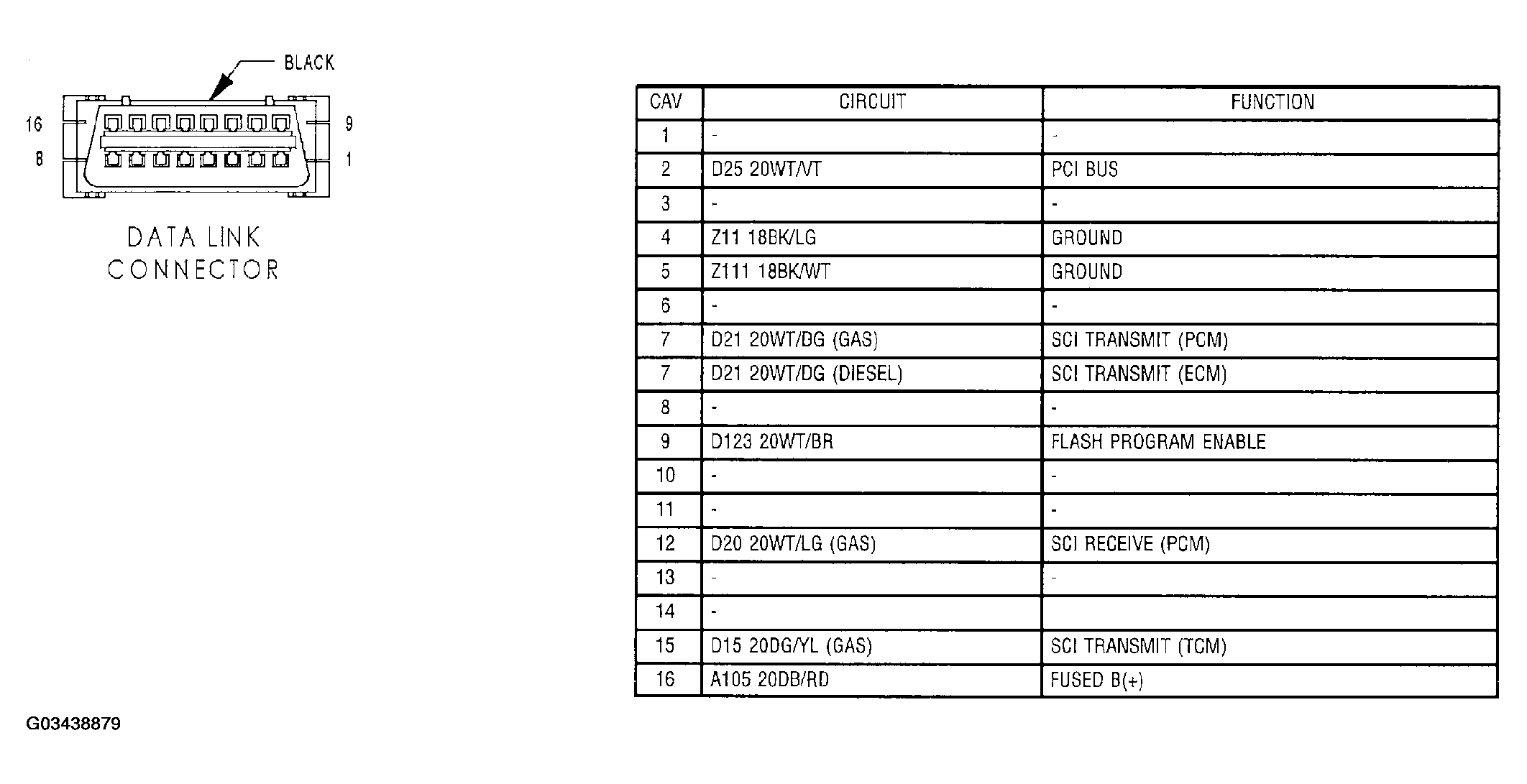

Fig 1: Data Link Connector End View
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
