Firing Order

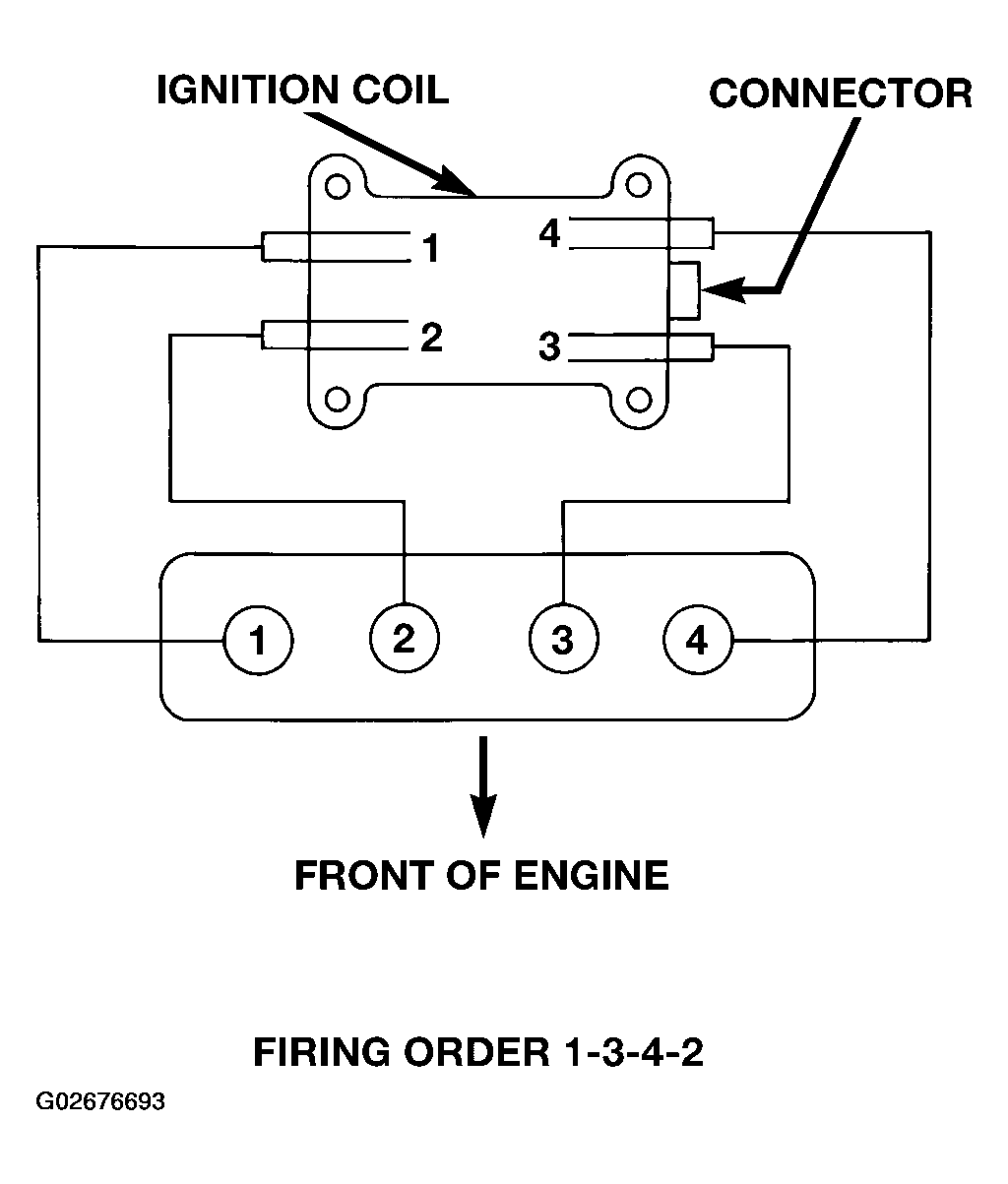

Fig 1: Identifying Firing (2.4L)
G02676693Courtesy of DAIMLERCHRYSLER CORP.

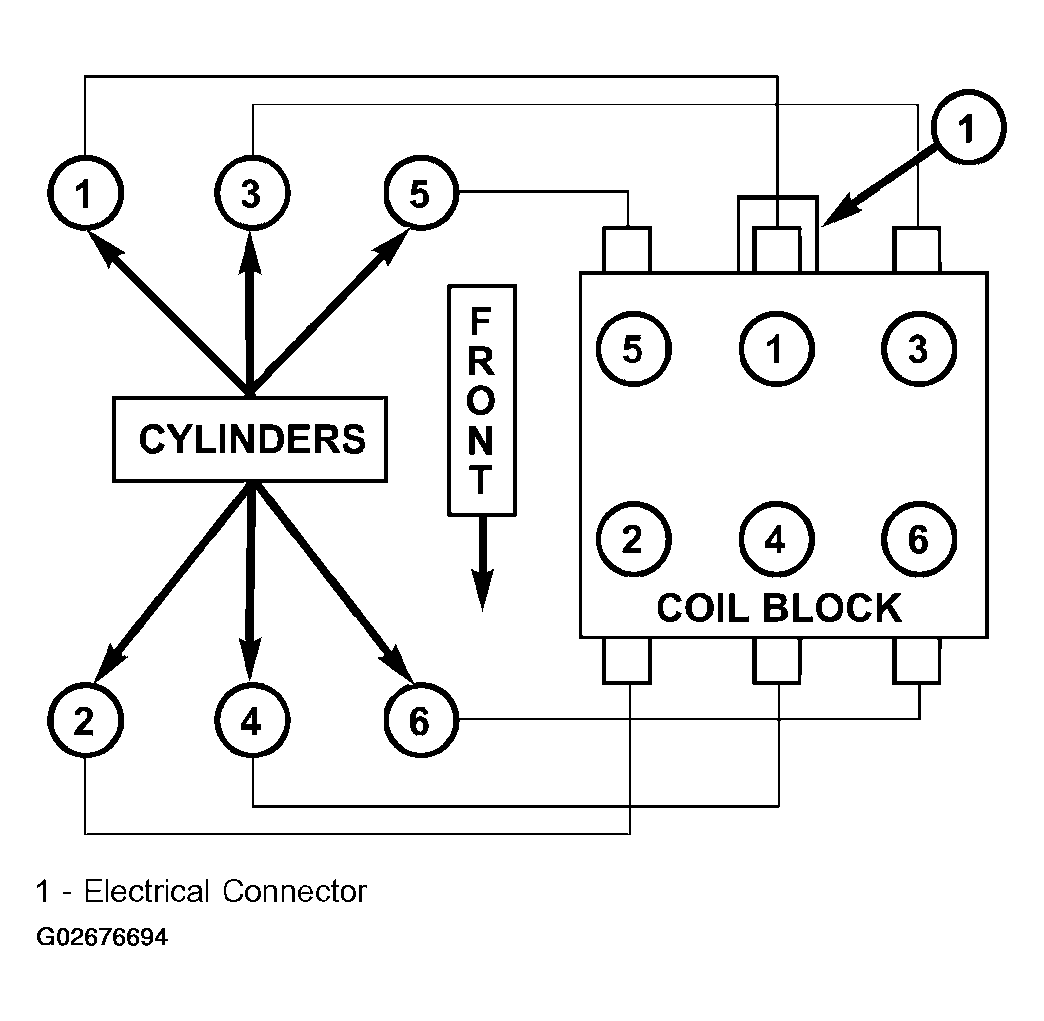

Fig 2: Identifying Firing Order (3.3/3.8L)
G02676694Courtesy of DAIMLERCHRYSLER CORP.
