Blower Motor Resistor Block Connector End View
Blower Motor Resistor Block Connector End View

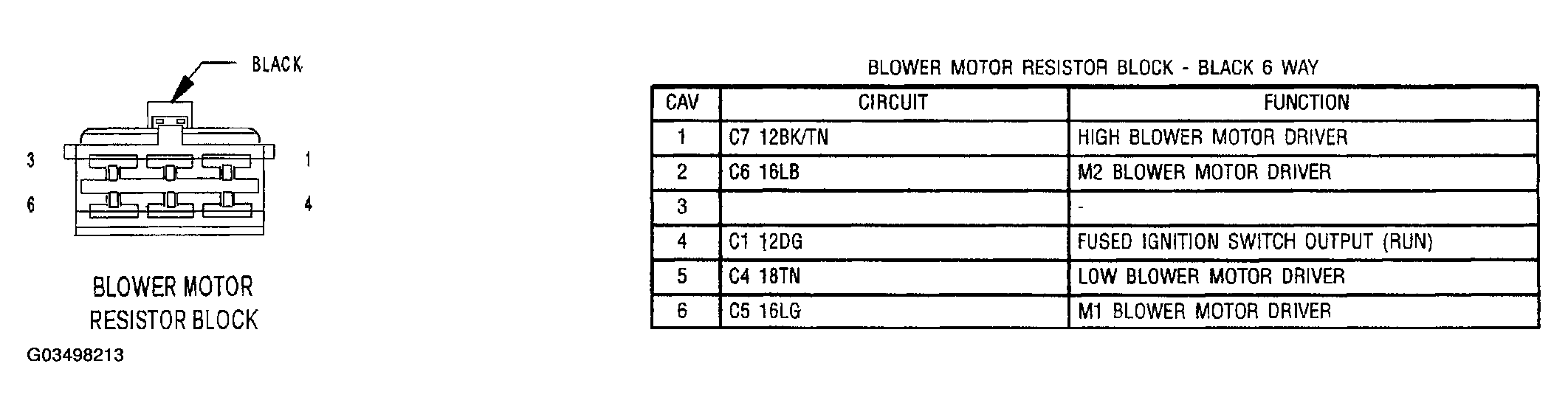

Fig 1: Blower Motor Resistor Block Connector End View
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
