Radiator Fan Connector End View
Radiator Fan Connector End View

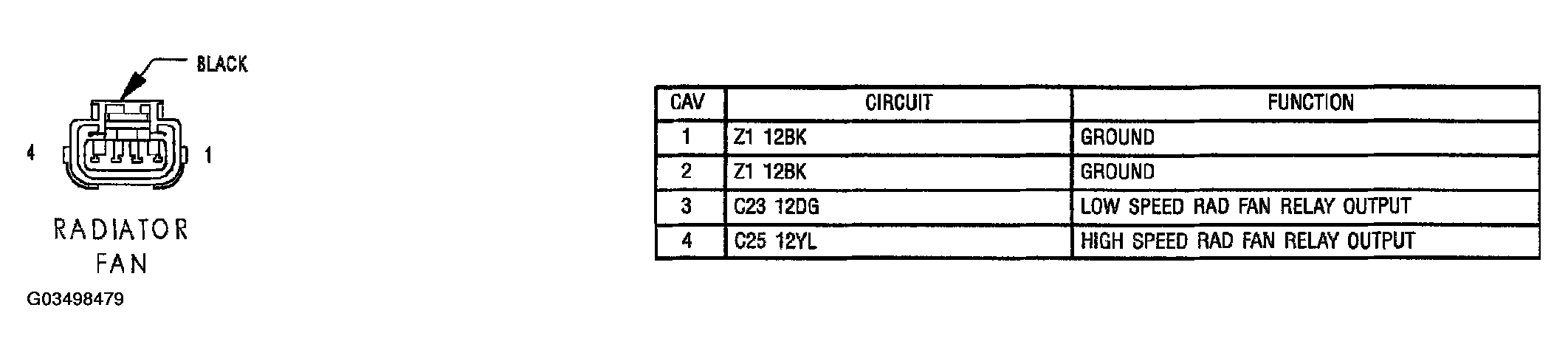

Fig 1: Radiator Fan Connector End View
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
