Oxygen Sensor 2/2 Left Bank Down
Oxygen Sensor 2/2 Left Bank Down

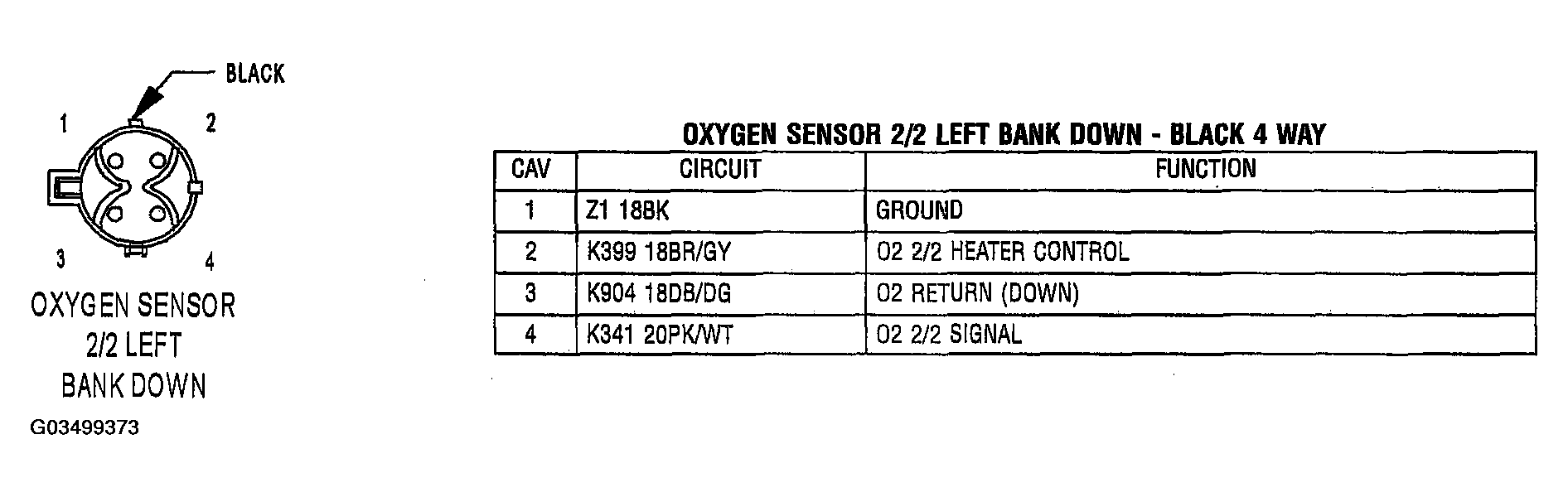

Fig 1: Identifying Oxygen Sensor 2/2 Left Bank Down Sensor Connector
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
