Blower Motor Power Module (ATC) Connector End View
Blower Motor Power Module (ATC) Connector End View

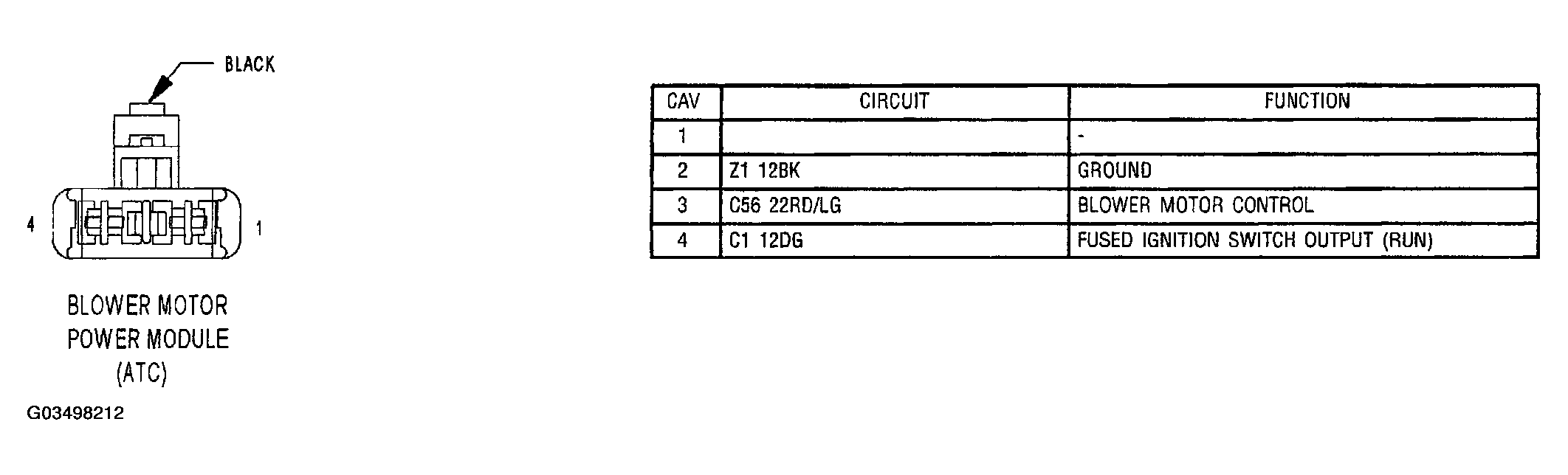

Fig 1: Blower Motor Power Module (Automatic Temperature Control) Connector End View
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
