C108 Connector End View

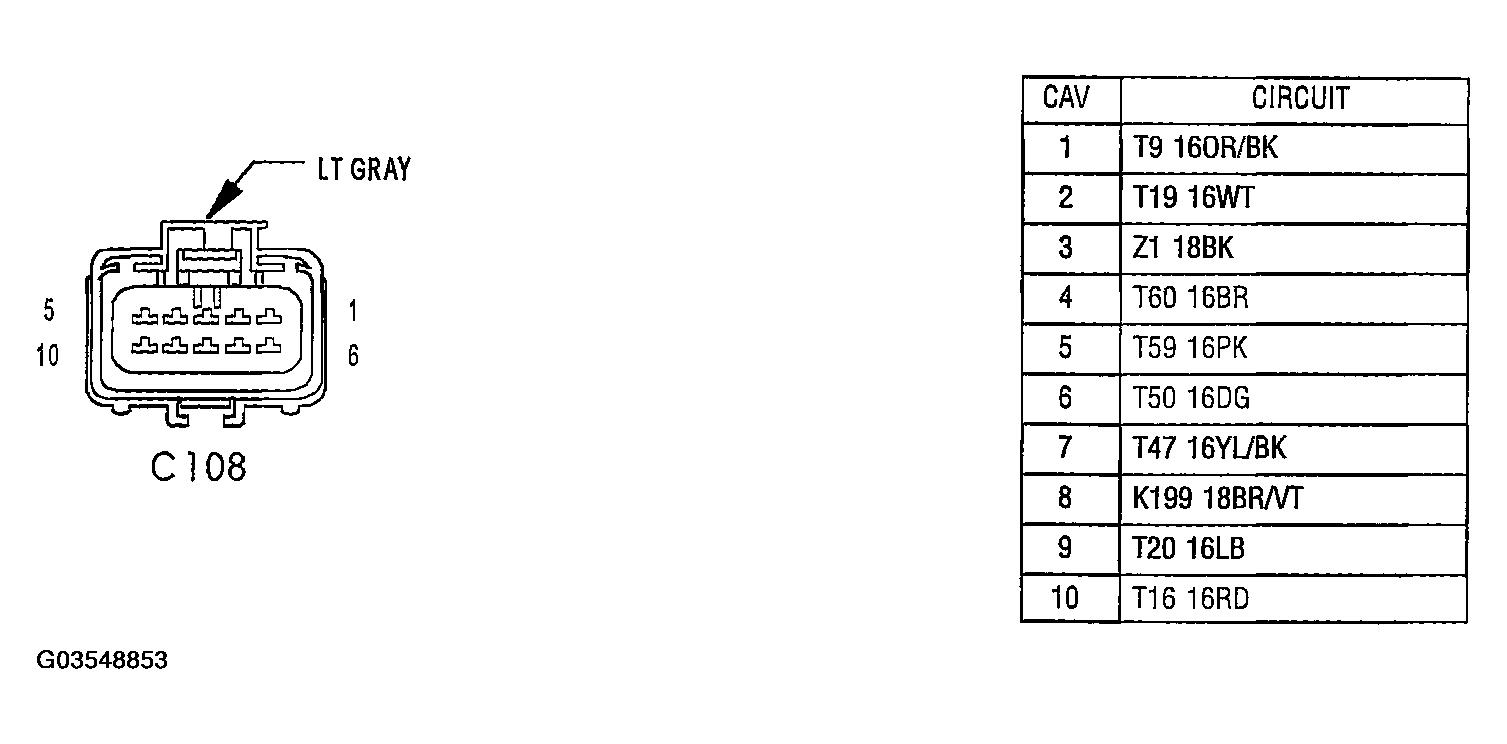

Fig 1: Identifying C108 Connector Terminals And Specification (LT. Gray - Headlamp/Dash Side)
G03548853Courtesy of DAIMLERCHRYSLER CORP.

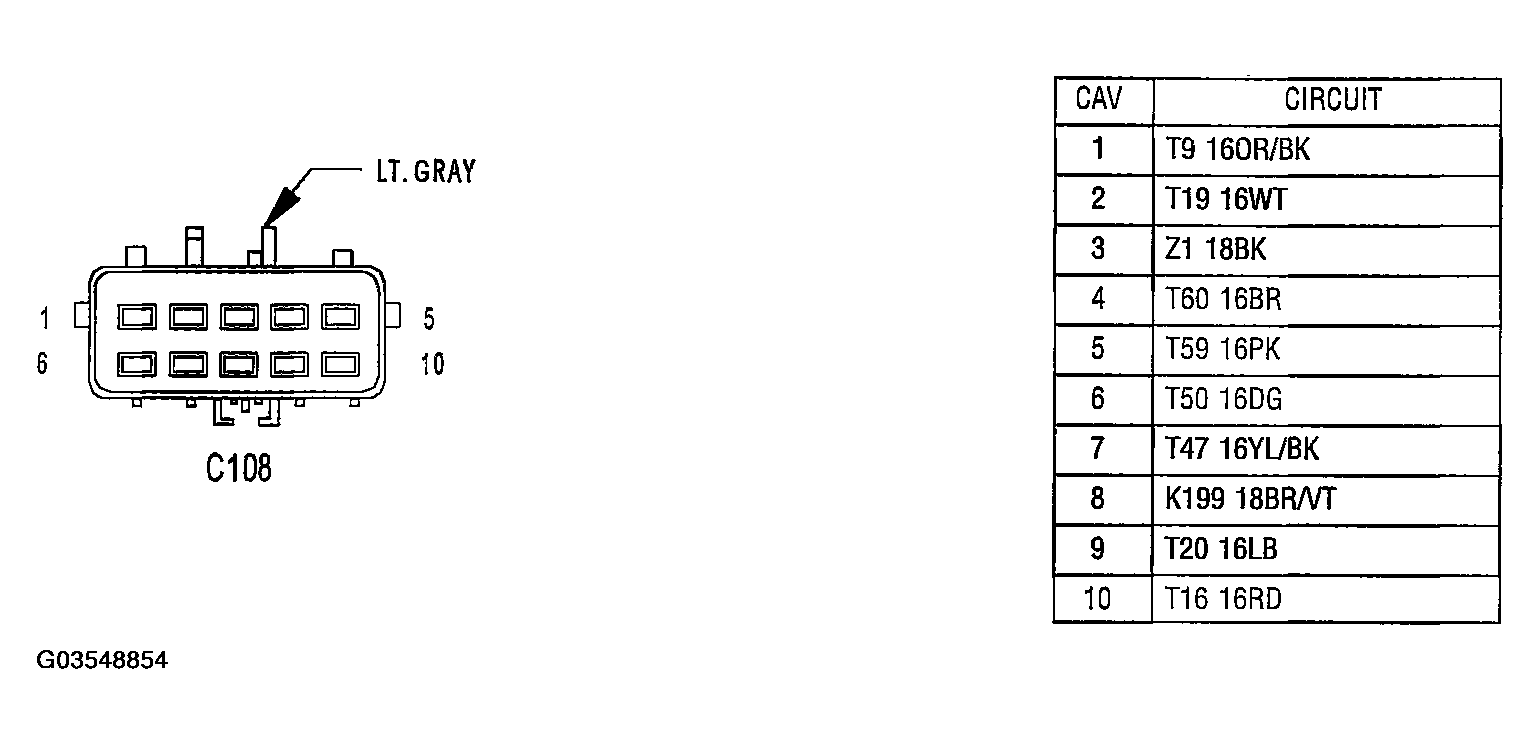

Fig 2: Identifying C108 Connector Terminals And Specification (LT. GRAY - Transmission Side)
G03548854Courtesy of DAIMLERCHRYSLER CORP.
