Automatic Transmission Diagnostic Procedures
›
Connector PINOUTS
›
Crankshaft Position Sensor Connector End View
Crankshaft Position Sensor Connector End View

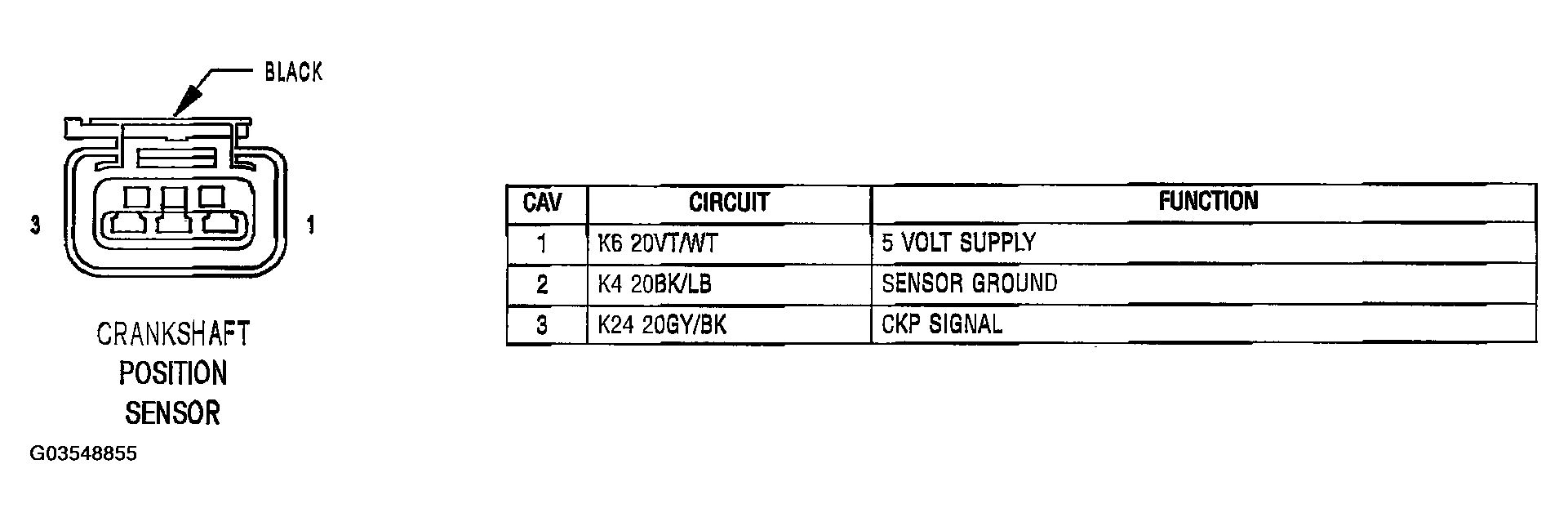

Fig 1: Identifying Crankshaft Position Sensor Connector Terminals And Specification (Black 3 Way)
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
