Memory Heated Seat/Mirror Module C1 Connector End View
Memory Heated Seat/Mirror Module C1 Connector End View

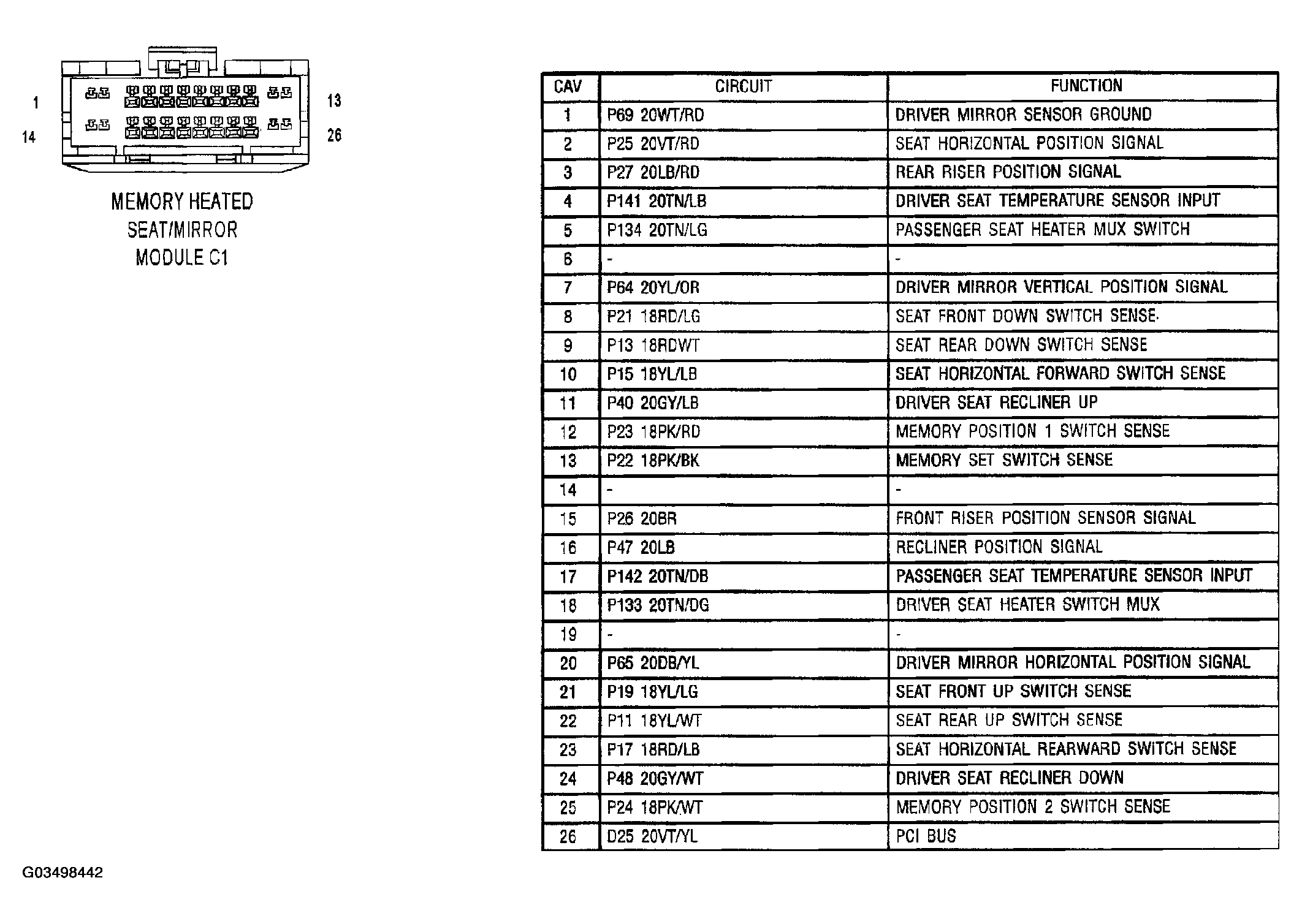

Fig 1: Memory Heated Seat/Mirror Module Connector End View (C1)
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
