Sentry Key Remote Entry Module Connector End View (C1)

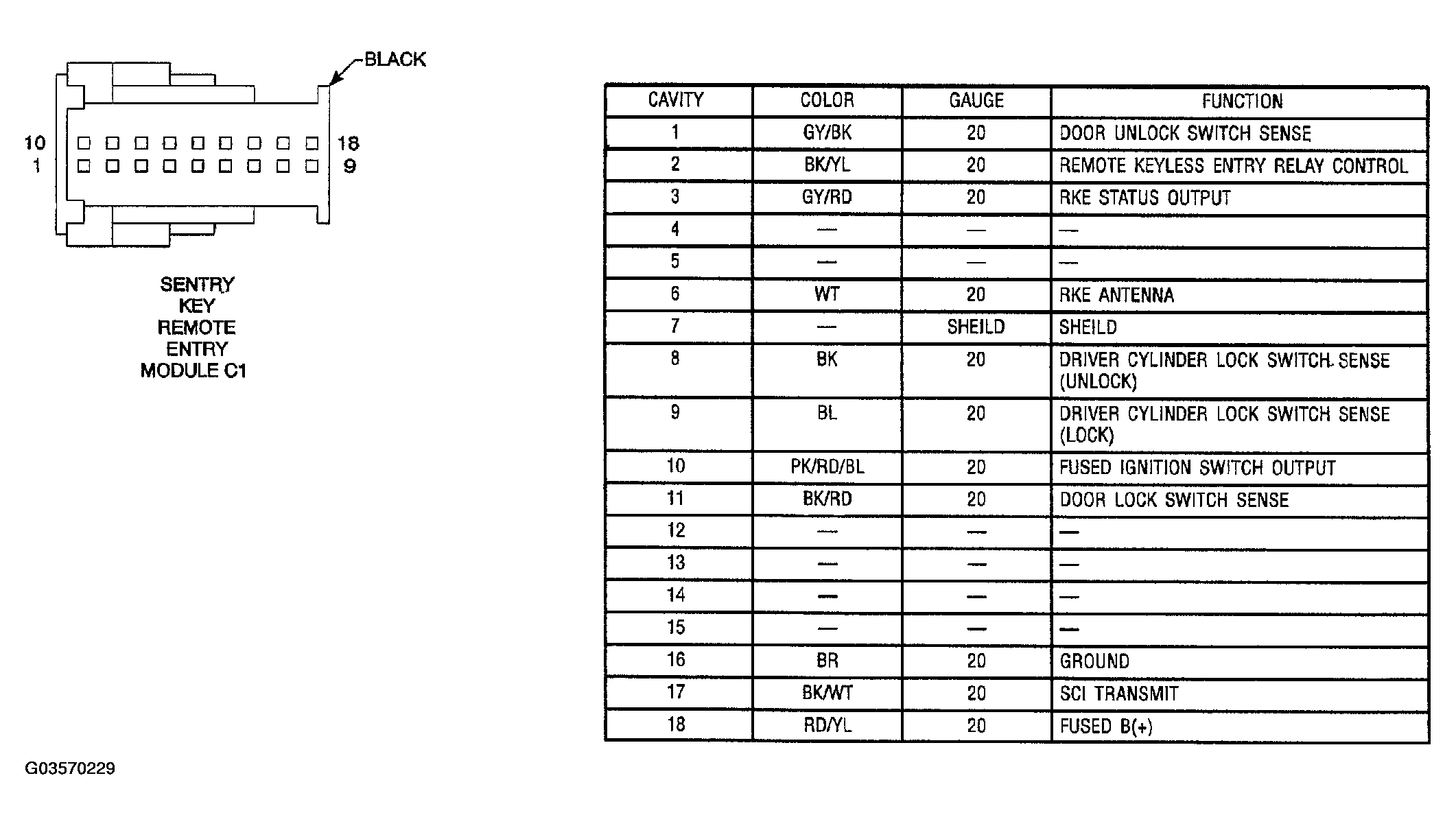

Fig 1: Sentry Key Remote Entry Module Connector End View (C1)
G03570229Courtesy of DAIMLERCHRYSLER CORP.
