Transmission Control Module Connector End View (C1)

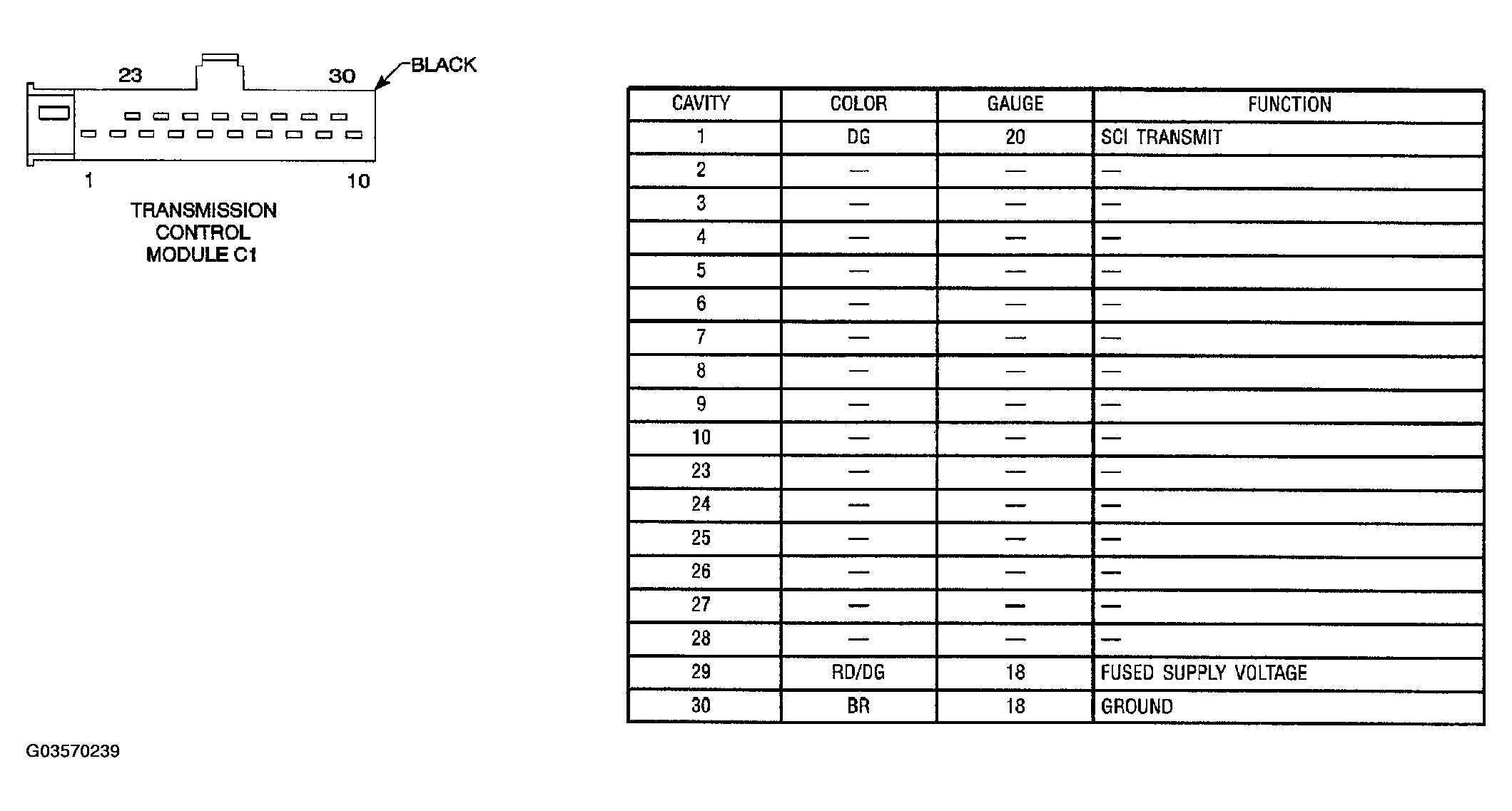

Fig 1: Transmission Control Module Connector End View (C1)
G03570239Courtesy of DAIMLERCHRYSLER CORP.
