Relay Control Module Connector End View (E)

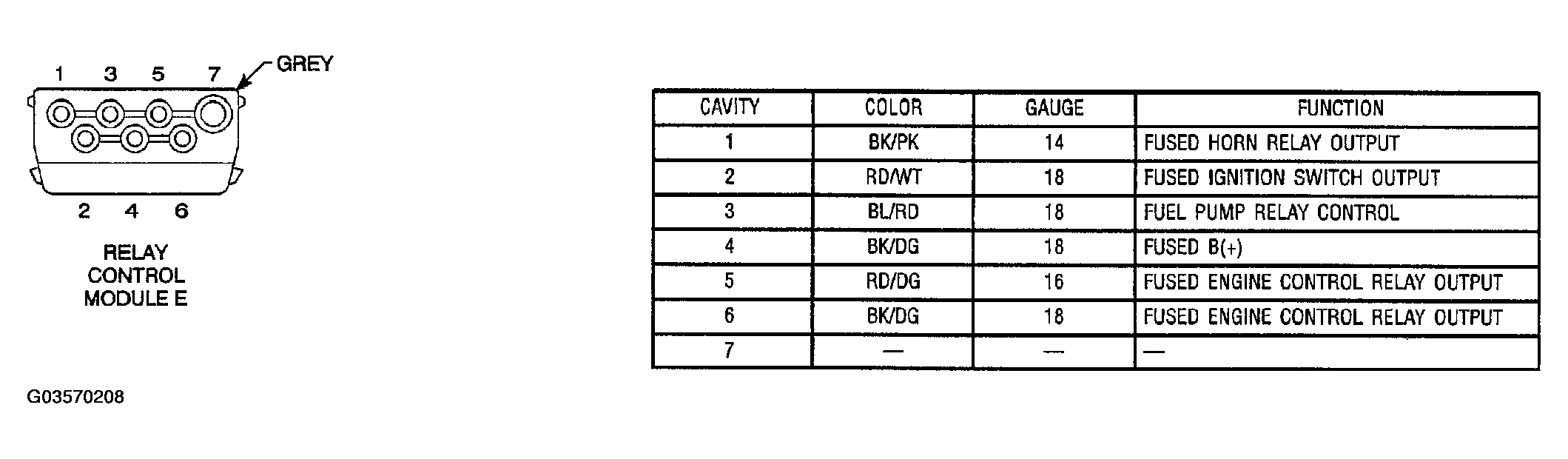

Fig 1: Relay Control Module Connector End View (E)
G03570208Courtesy of DAIMLERCHRYSLER CORP.
