Vehicle Theft Security System: Siren: Installation

Connect the siren electrical connector (1).

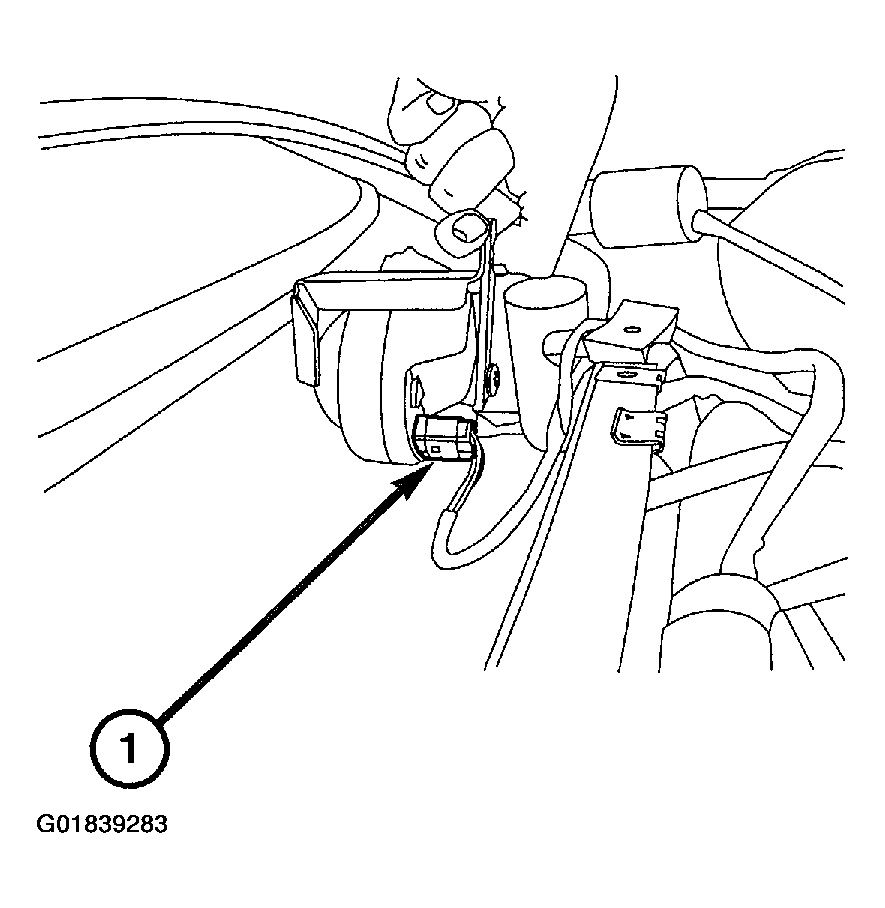

Fig 1: Connecting Siren Electrical Connector
Courtesy of DAIMLERCHRYSLER CORP.
Install the bolt (1) to the siren bracket.

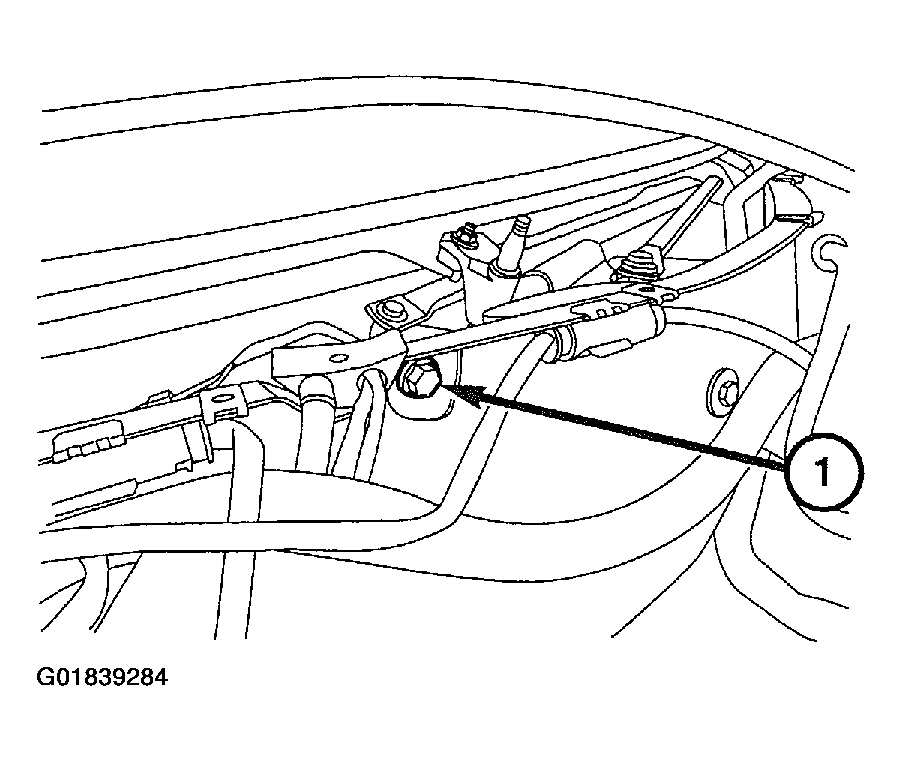

Fig 2: Installing Bolt To Siren Bracket
Courtesy of DAIMLERCHRYSLER CORP.
Install the cowl grille. See BODY article.
