Window Regulator: Removal

  1. Remove the door glass. See DOOR GLASS .
    2. NOTE: Remove the rivet residue and any metal chips from the door.

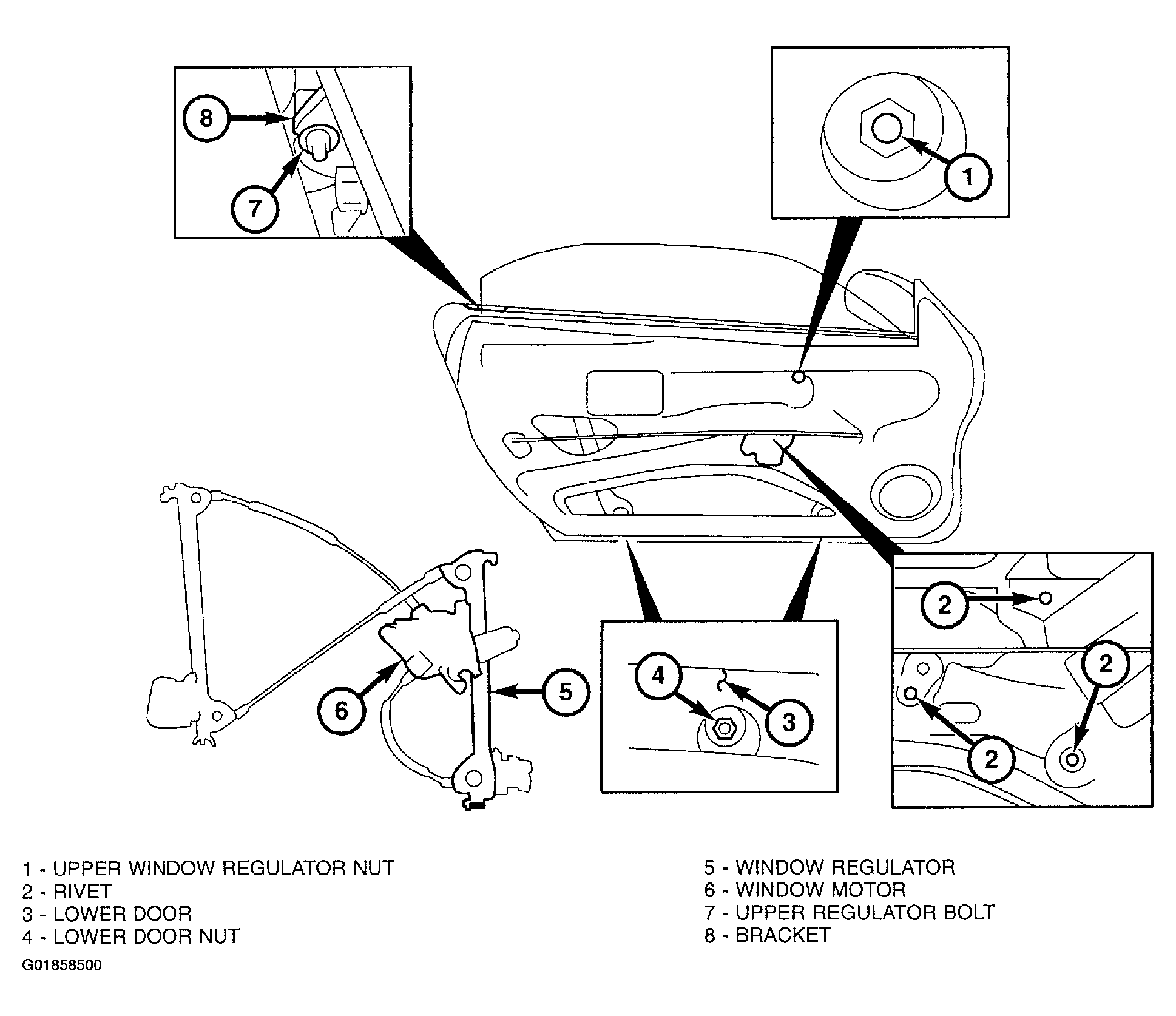

    Fig 1: Removing Window Regulator
    G01858500Courtesy of DAIMLERCHRYSLER CORP.
  2. Drill out the rivets (2).
    3. NOTE: Loosen the bolt only until window lift mechanism can be moved out of bracket.
  3. Loosen the upper regulator bolt (7) which is between the inner and outer door panel on the face of the door.
  4. Remove the upper window regulator nut (1).
  5. Remove the lower door nuts (4) from the door bottom. Nuts are located behind the rubber plugs.
  6. Unclip power window motor cable from the door.
  7. Lift the window regulator up, then turn it and lift the regulator out through the assembly opening in the door.
