Central Locking Pump Module/ Security System Module Connector End View (C2)

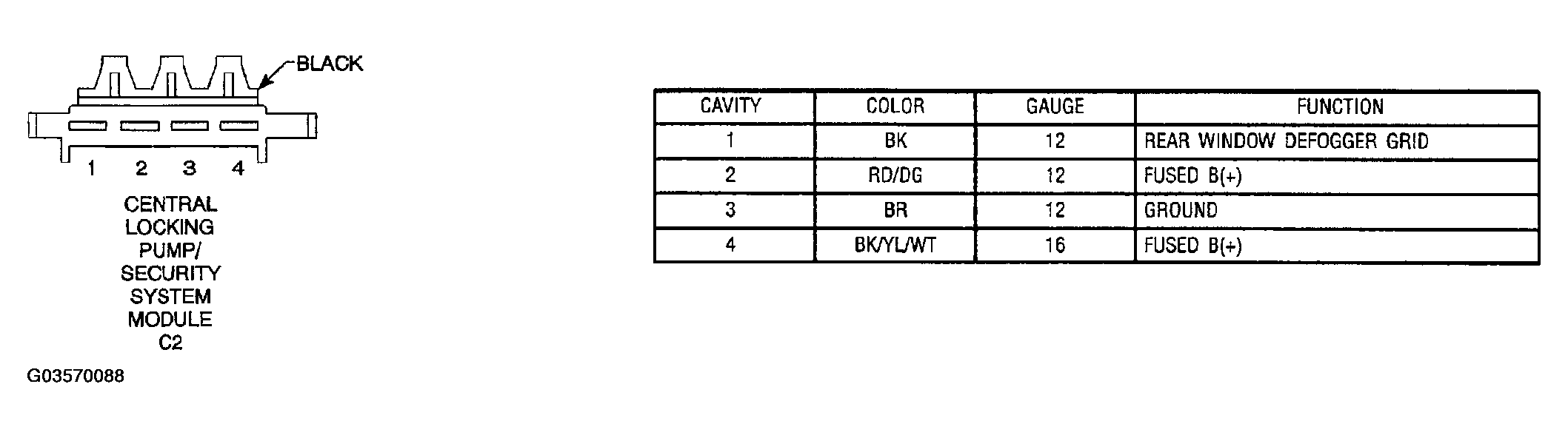

Fig 1: Central Locking Pump Module/ Security System Module Connector End View (C2)
G03570088Courtesy of DAIMLERCHRYSLER CORP.
