Inline Connector End View (C231)

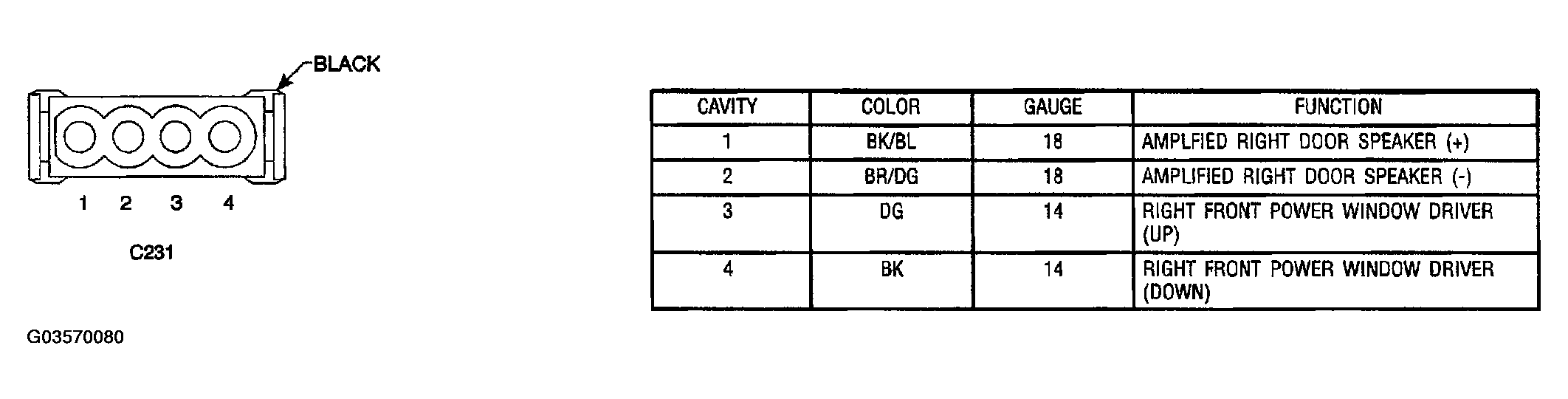

Fig 1: Inline Connector End View (C231)
G03570080Courtesy of DAIMLERCHRYSLER CORP.

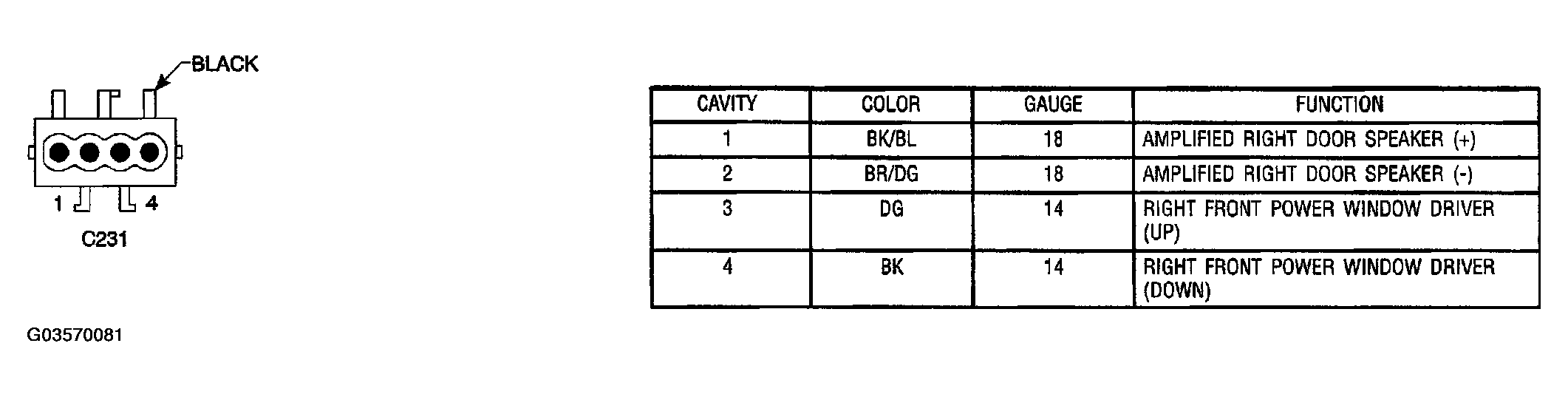

Fig 1: Inline Connector End View (C231)
G03570081Courtesy of DAIMLERCHRYSLER CORP.
