Power Amplifier Connector End View (B)

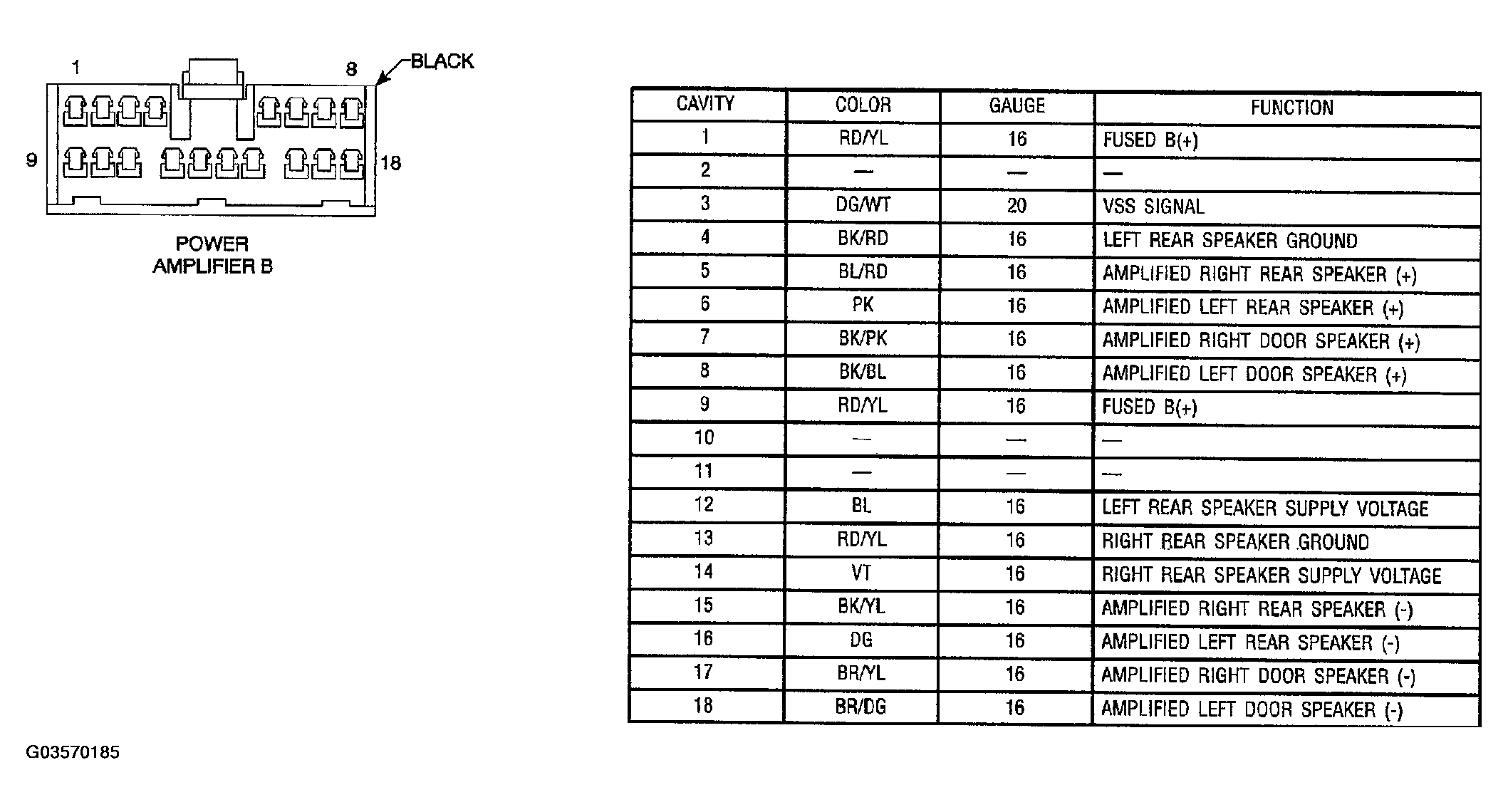

Fig 1: Power Amplifier Connector End View (B)
G03570185Courtesy of DAIMLERCHRYSLER CORP.
