Powertrain Control Module Connector End View (C5)

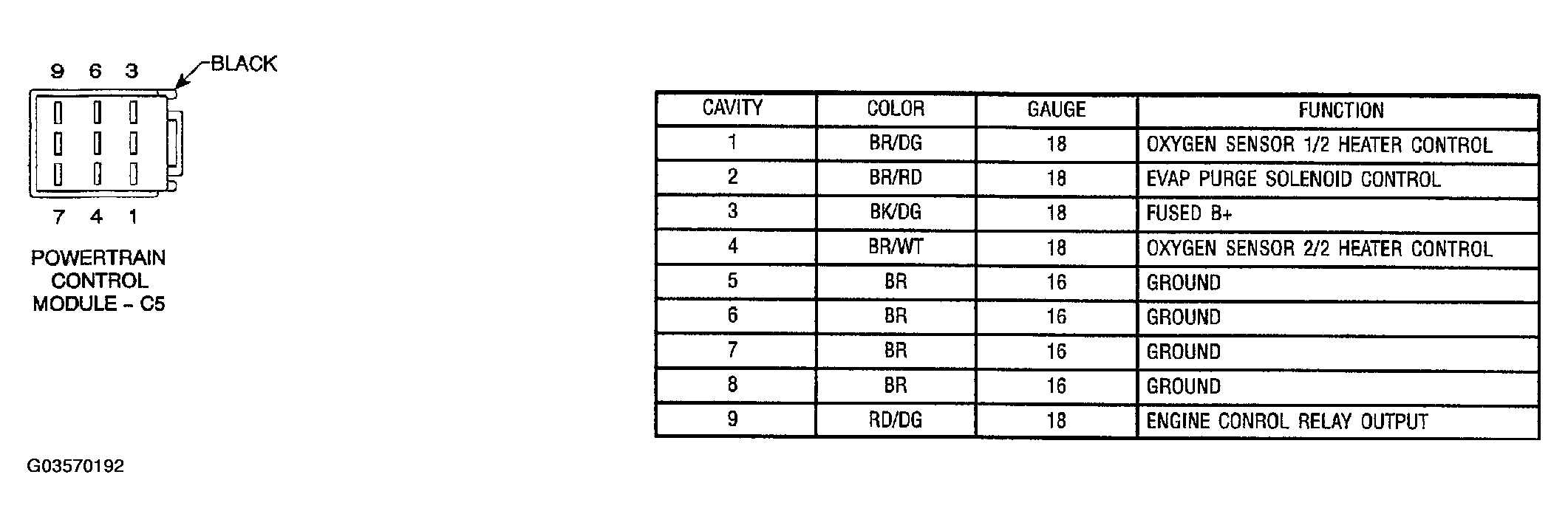

Fig 1: Powertrain Control Module Connector End View (C5)
G03570192Courtesy of DAIMLERCHRYSLER CORP.
