Right Rear Wheel Speed Sensor Connector End View
Right Rear Wheel Speed Sensor Connector End View

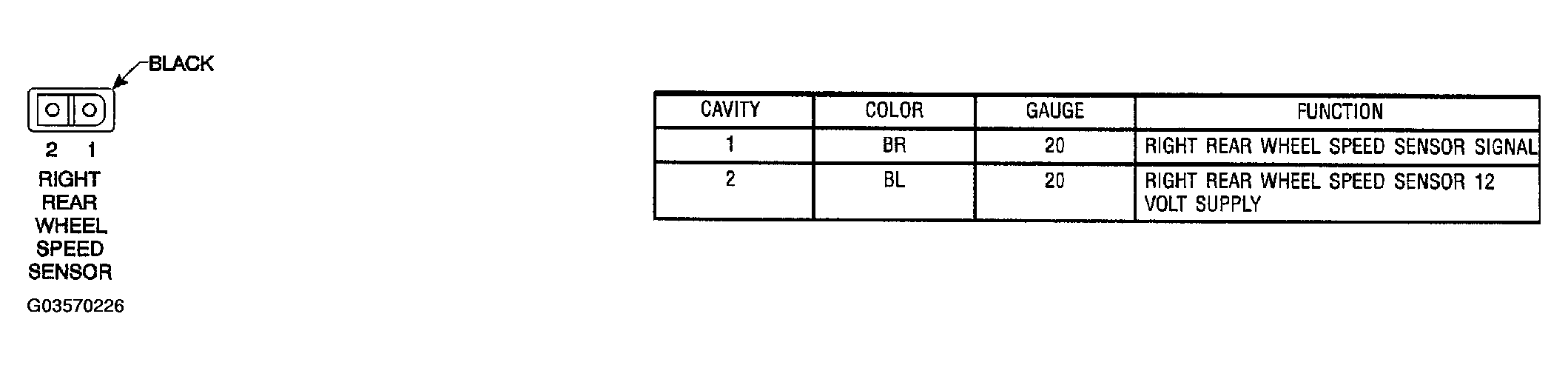

Fig 1: Right Rear Wheel Speed Sensor Connector End View
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
