Standard Procedure - Checking Battery Electrolyte Level

The following procedure can be used to check the battery electrolyte level.

1. Remove the battery (2) cell cap (1).

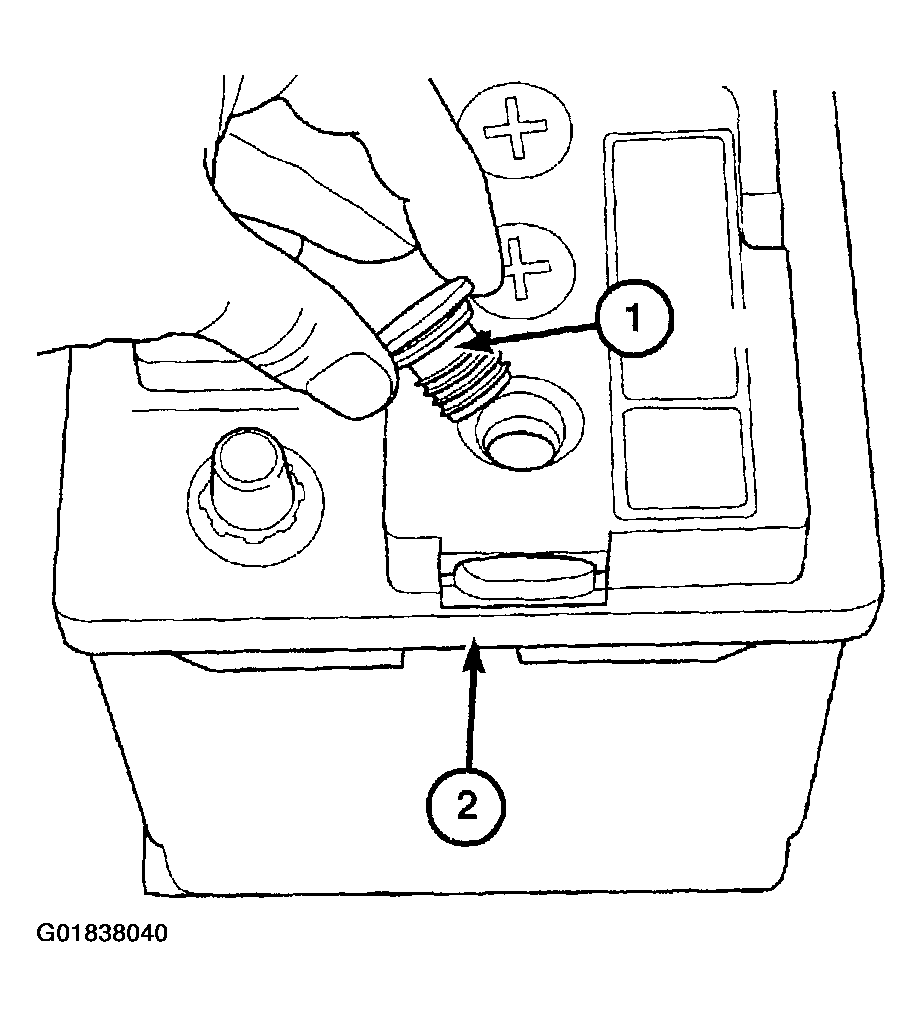

Fig 1: Removing Battery Cell Cap
Courtesy of DAIMLERCHRYSLER CORP.
2. Look through the battery cap holes (1) to determine the level of the electrolyte in the battery. The electrolyte should be approximately 1 centimeter above the battery plates or until the lip (2) inside the battery cap holes is covered.

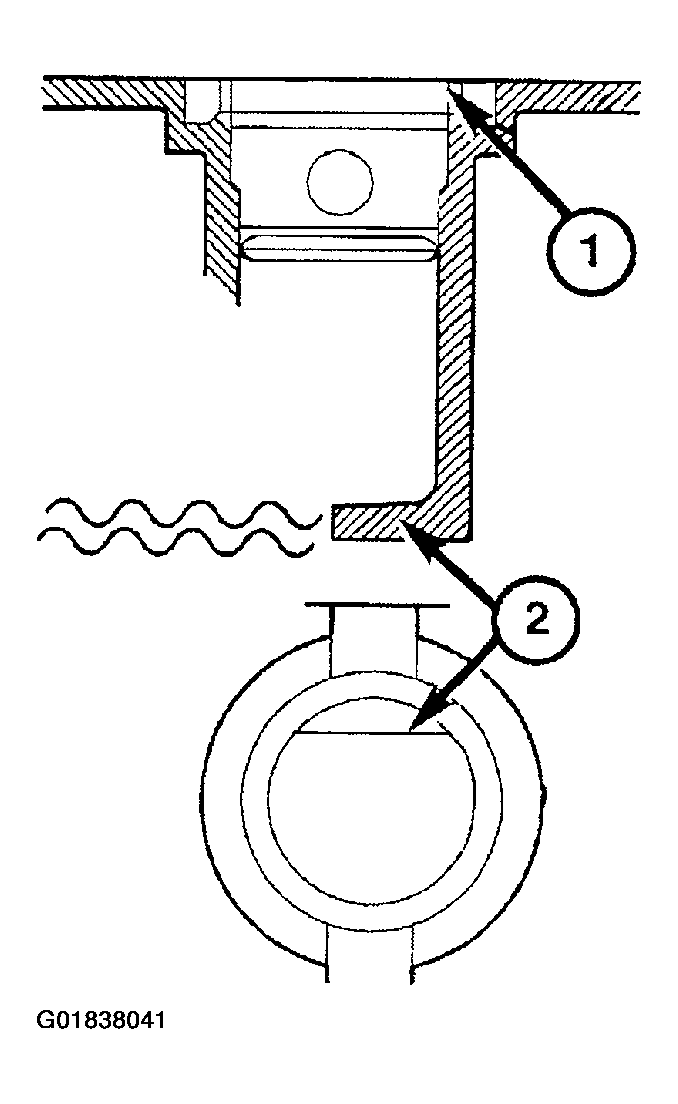

   Fig 2: Identifying Battery Cap Holes

   Courtesy of DAIMLERCHRYSLER CORP.
3. Add only distilled water until the electrolyte level is approximately one centimeter above the plates.
