Battery System: Tray: Removal

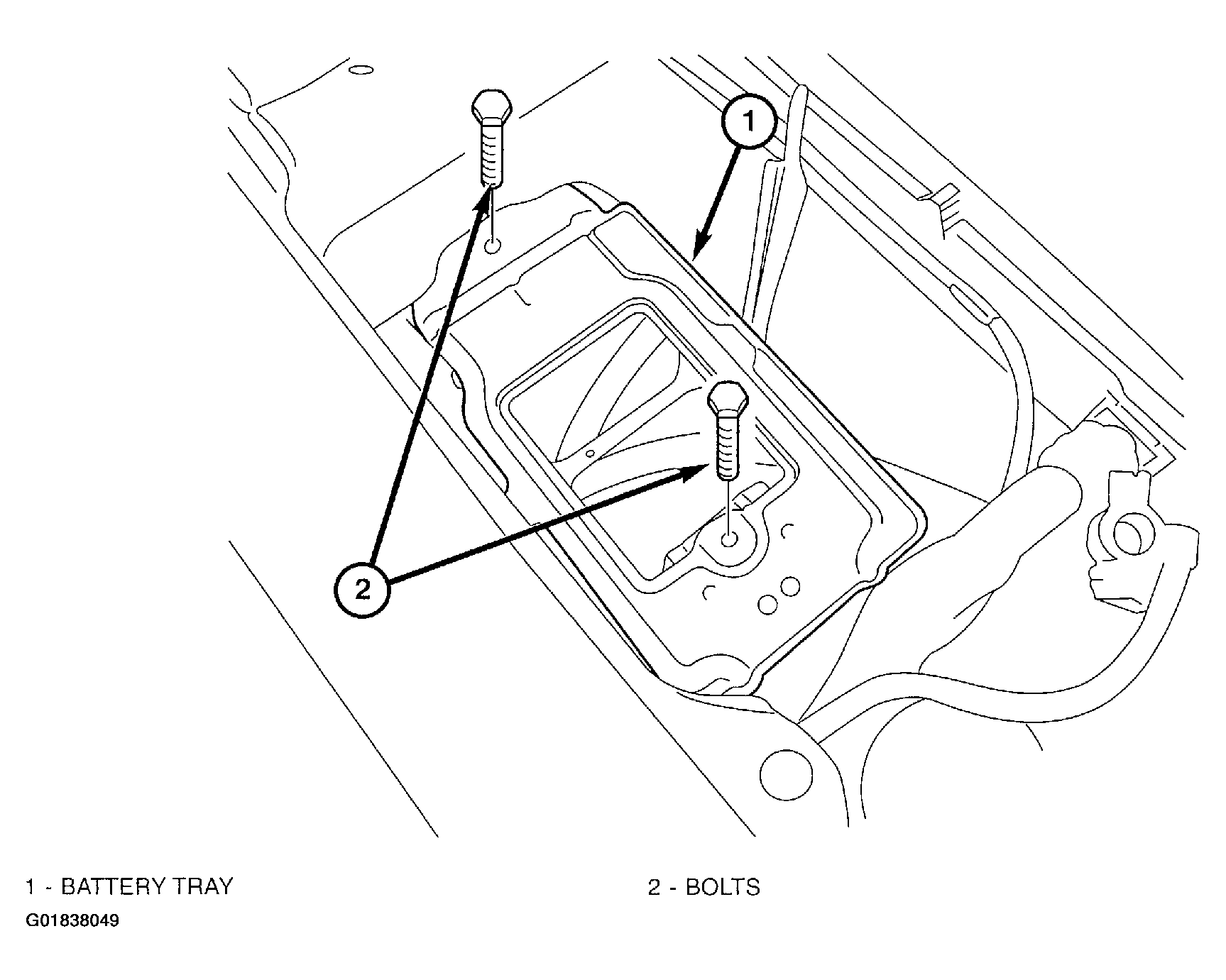

Fig 1: Removing Battery Tray And Retaining Bolts

Courtesy of DAIMLERCHRYSLER CORP.

1. Remove the battery. Refer to REMOVAL - BATTERY  .
2. Remove the battery tray (1) retaining bolts (2).
3. Remove the battery tray (1).
