Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component |
Location |
| Control Module Box |

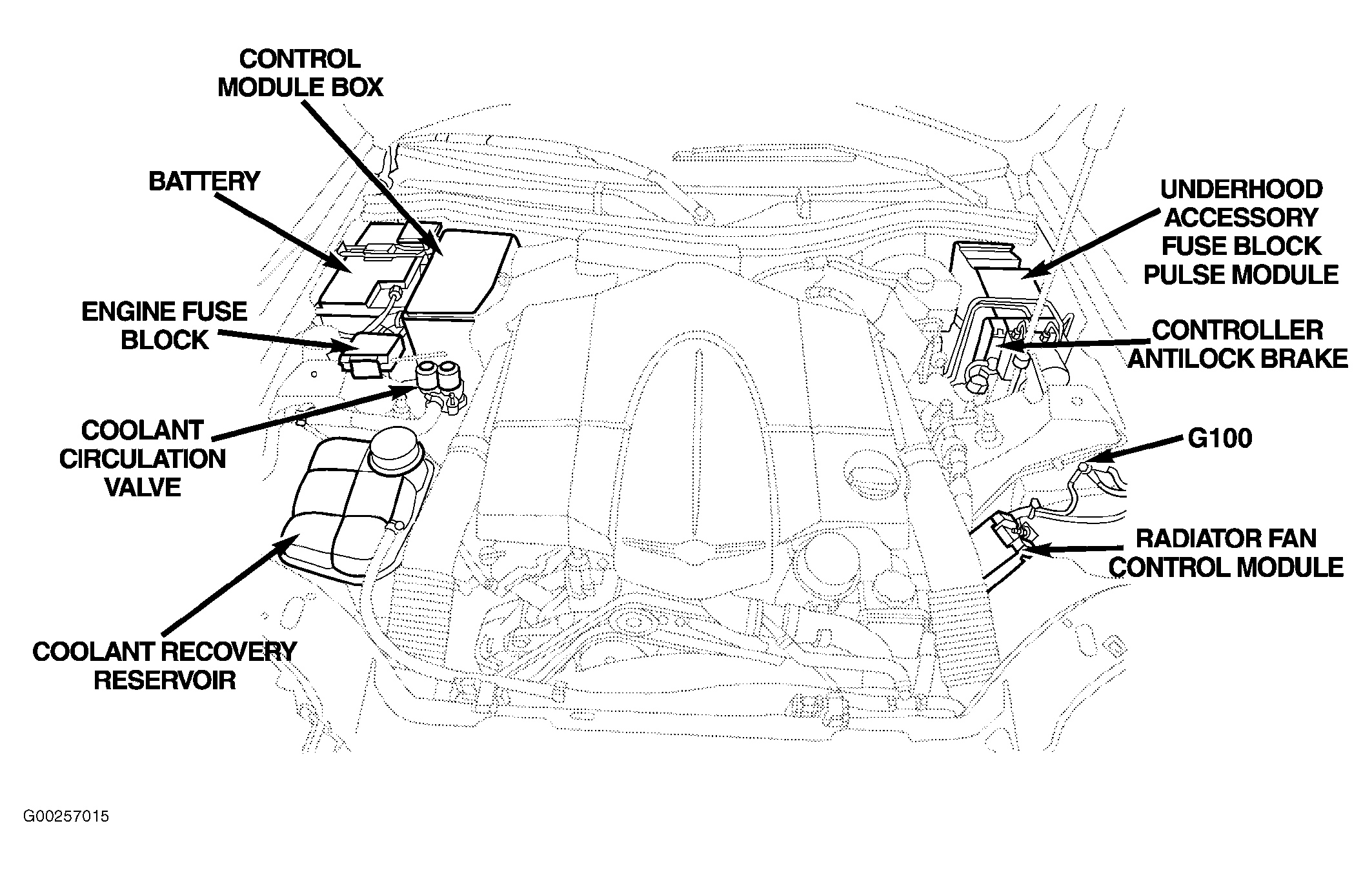

At right rear of engine compartment. See Figure
. |
| Engine Fuse Block |
At right rear of engine compartment. See Figure
. |
| Underhood Accessory Fuse Block |

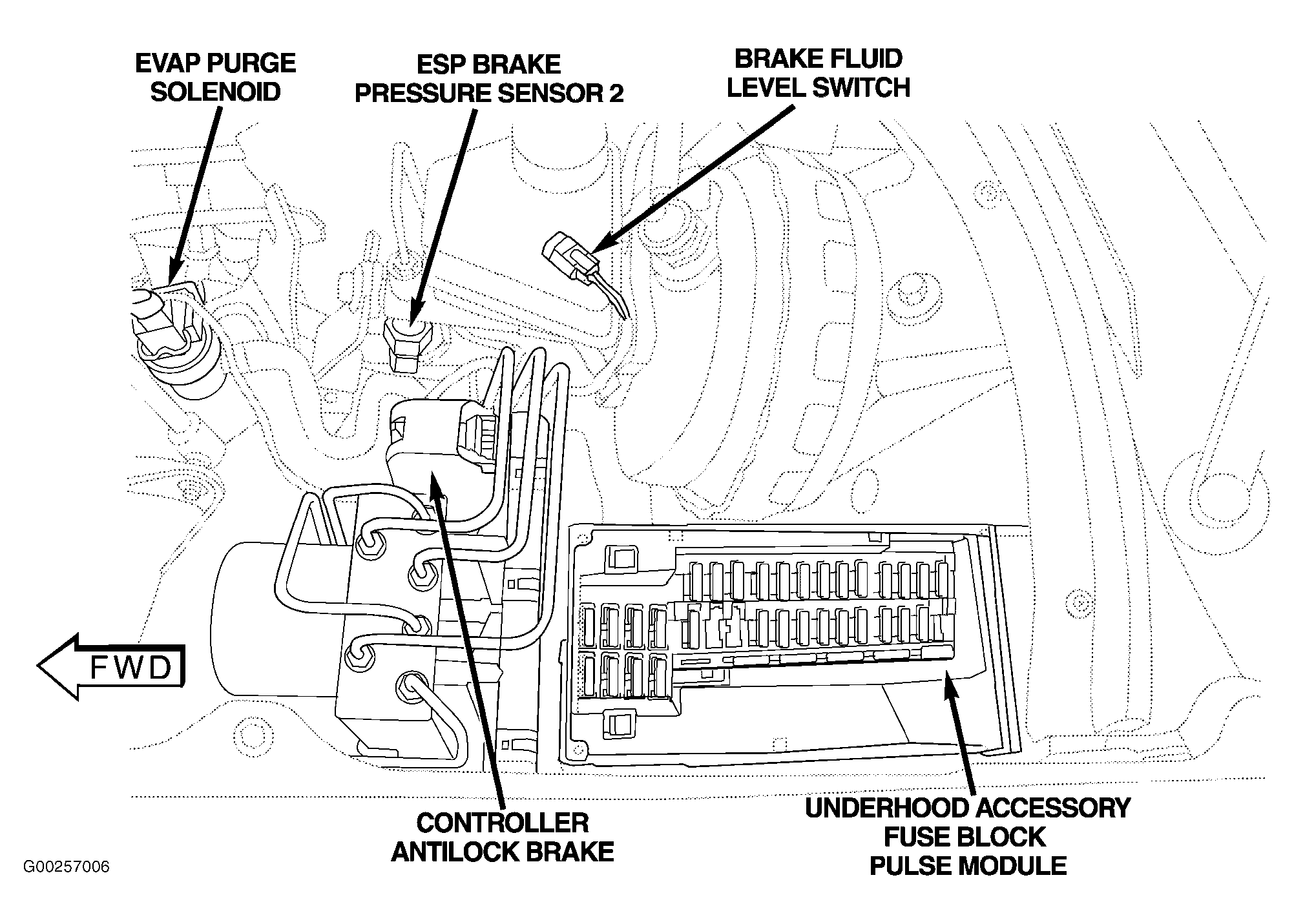

At left rear of engine compartment. See Figure
. |
