Central Locking Pump Module/ Security System Module Connector End View (C1)

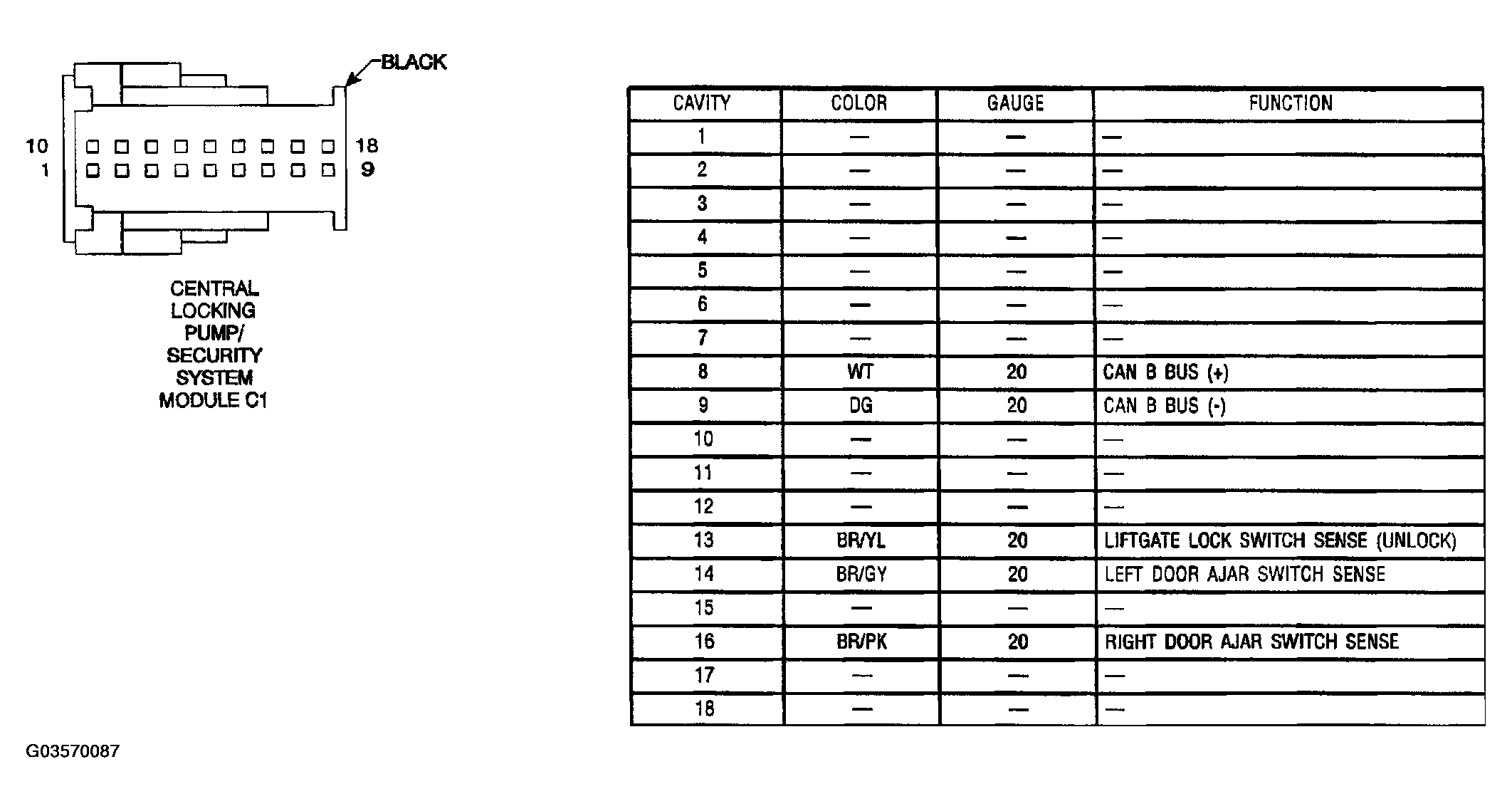

Fig 1: Central Locking Pump Module/ Security System Module Connector End View (C1)
G03570087Courtesy of DAIMLERCHRYSLER CORP.
