Pulse Module Connector End View (A)

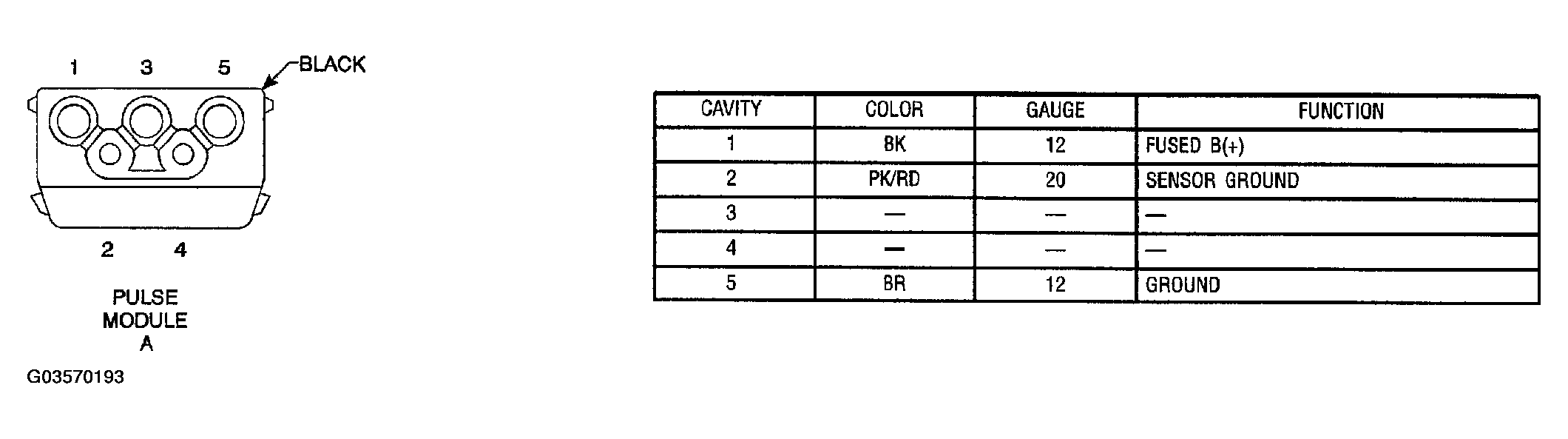

Fig 1: Pulse Module Connector End View (A)
G03570193Courtesy of DAIMLERCHRYSLER CORP.
