Accelerator Pedal Position Sensor Connector End View
Accelerator Pedal Position Sensor Connector End View

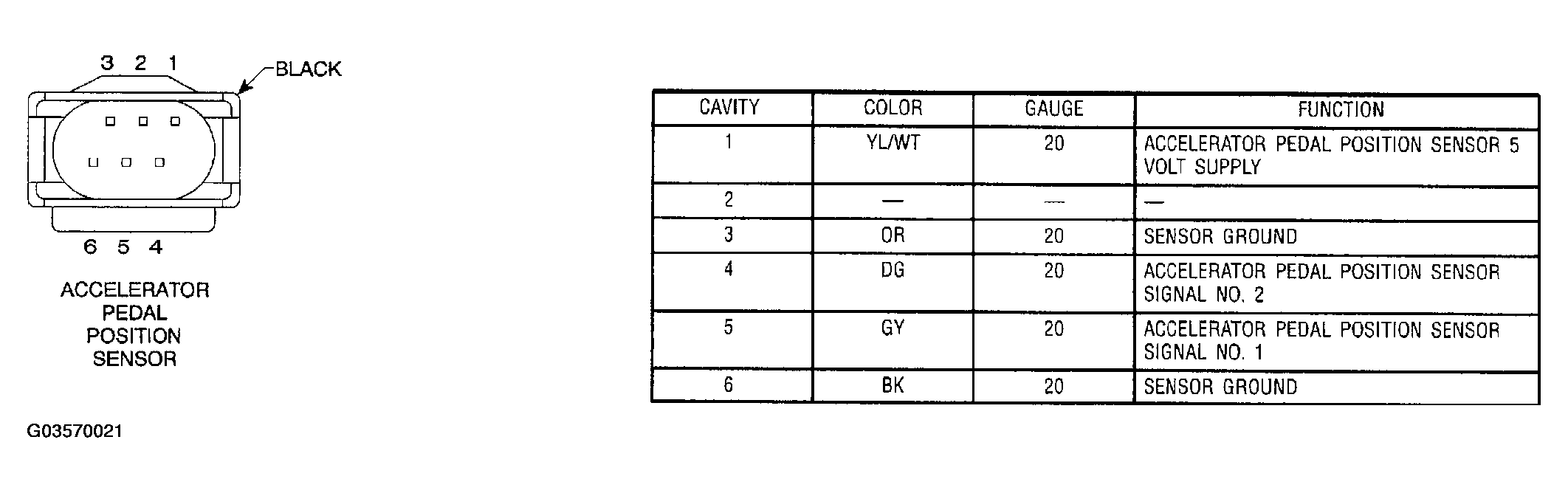

Fig 1: Accelerator Pedal Position Sensor Connector End View
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
