Back Up Lamp Switch Connector End View
Back Up Lamp Switch Connector End View

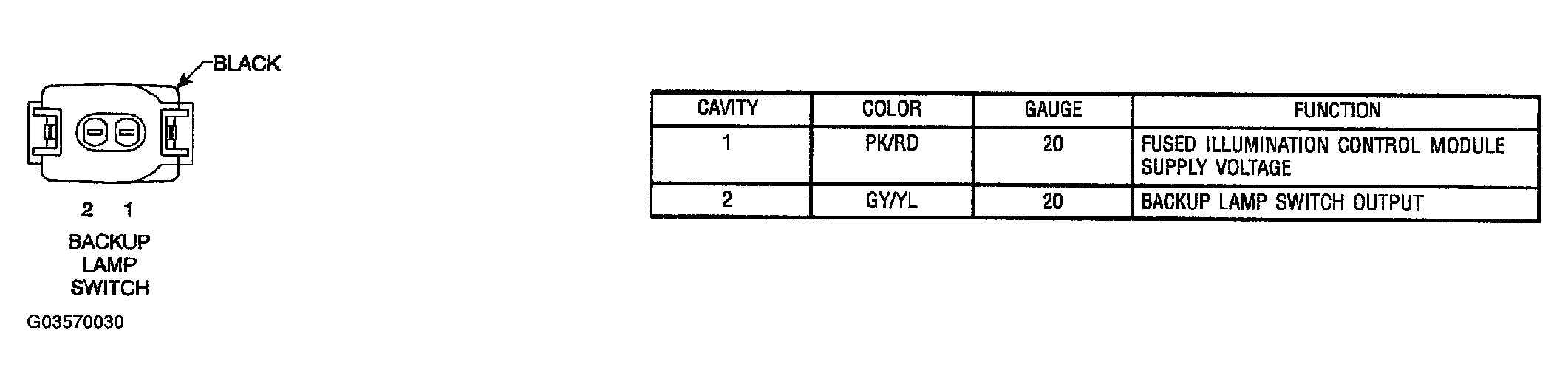

Fig 1: Back Up Lamp Switch Connector End View
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
