Throttle Position Sensor: Description

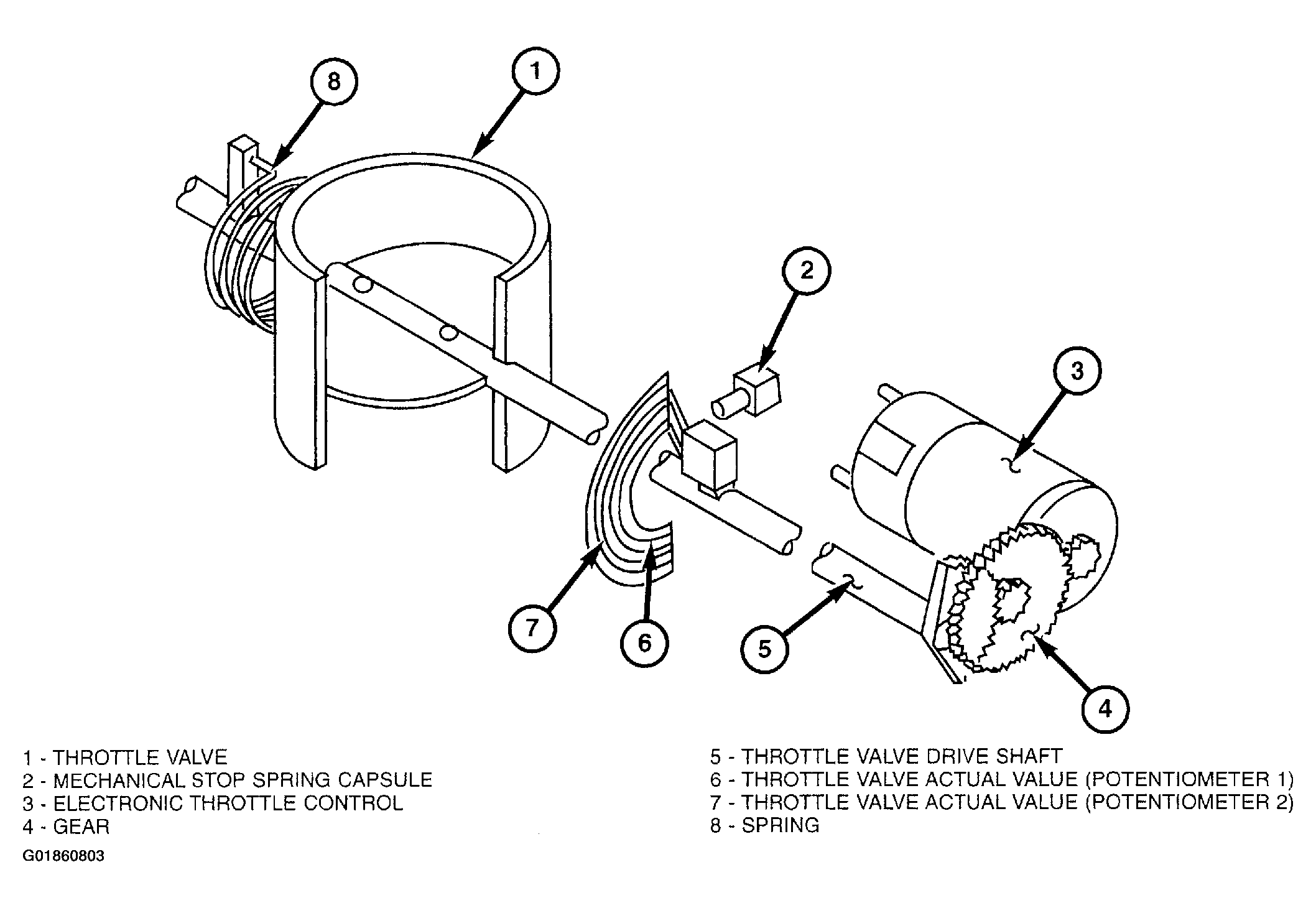

Fig 1: Identifying Throttle Position Sensor Components

Courtesy of DAIMLERCHRYSLER CORP.

The throttle position sensor (TPS) is a part of the throttle body.

The TPS cannot be removed separately. Refer to the throttle body removal and installation procedures. See THROTTLE BODY .
