Schematics And Diagrams

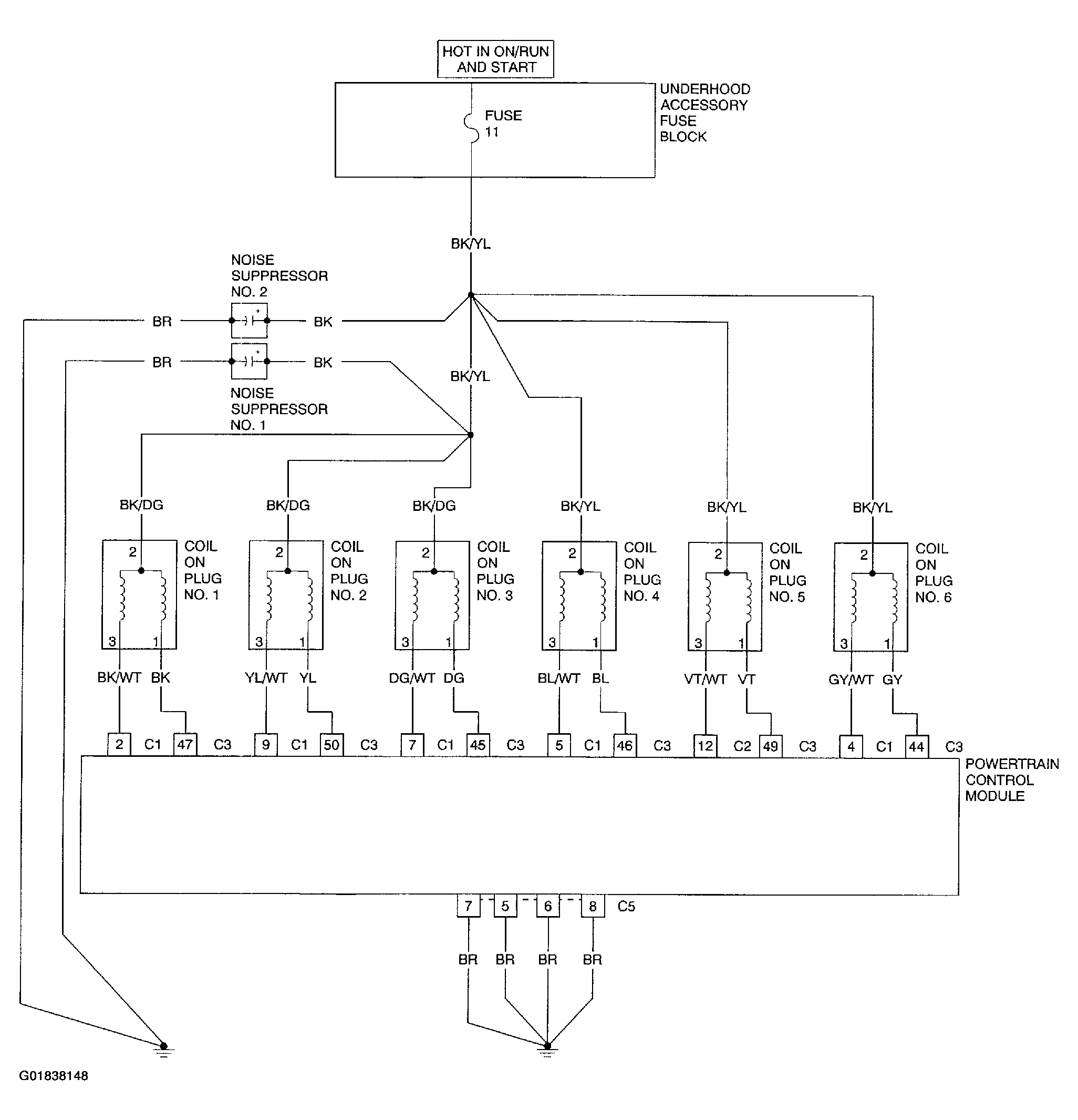

Fig 1: Identifying Ignition System Circuit Diagram
G01838148Courtesy of DAIMLERCHRYSLER CORP.
