*Checking Fuel Delivery
›
Circuit Diagram & Connector Identification
Circuit Diagram & Connector Identification

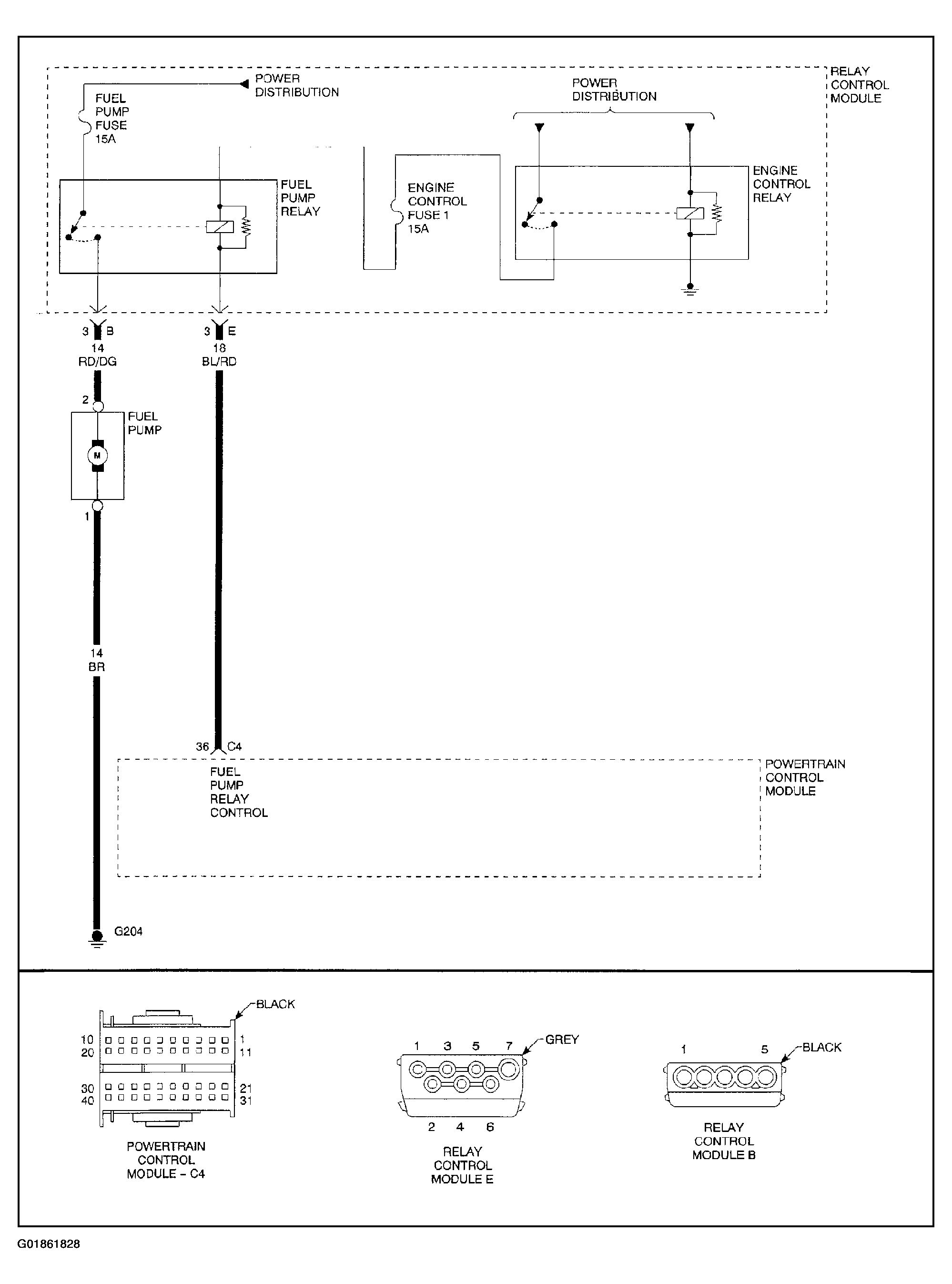

Fig 1: Identifying Fuel Delivery Circuit Diagram & Connector Identification
Courtesy of DAIMLERCHRYSLER CORP.
