Circuit Diagram & Connector Identification

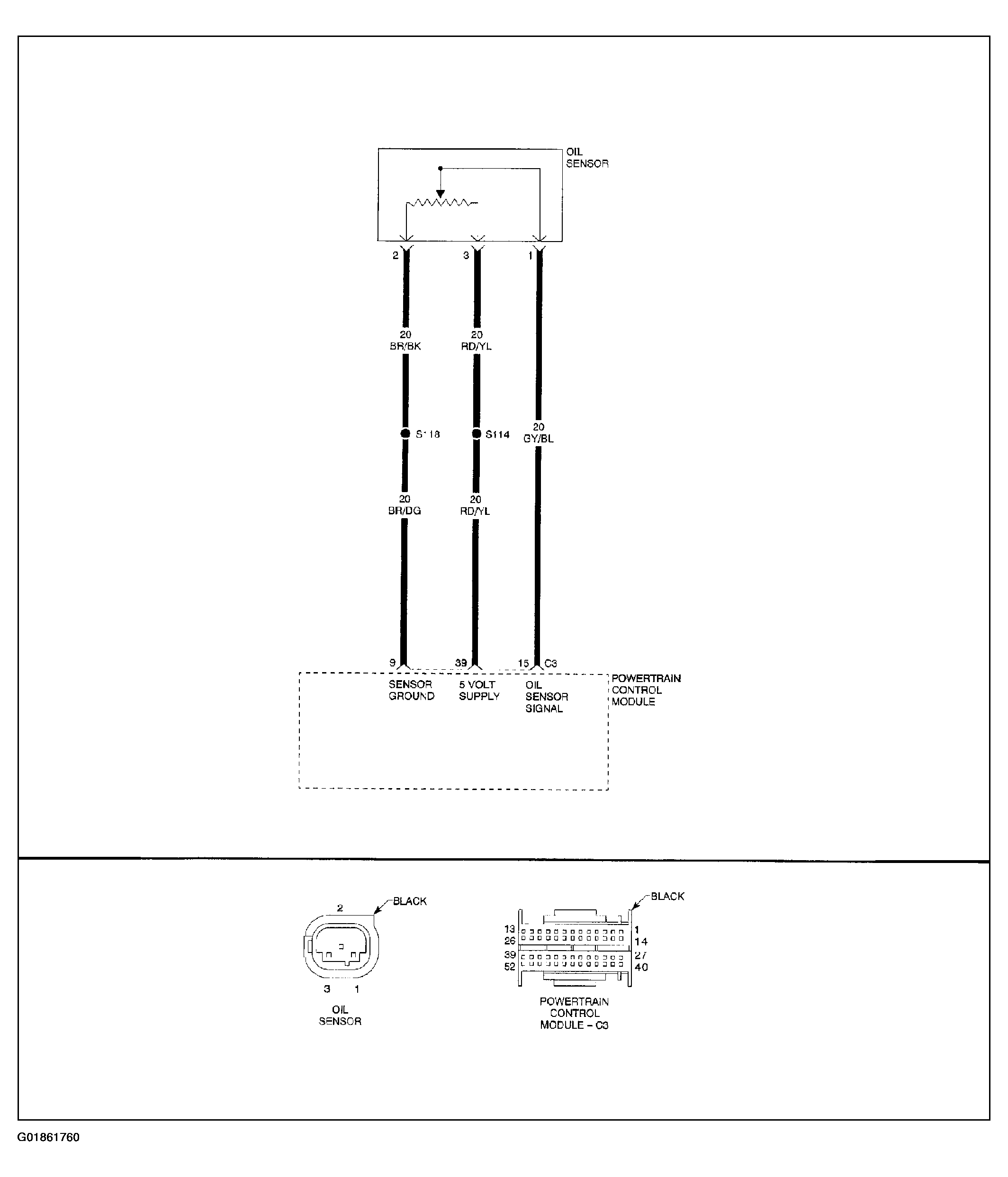

Fig 1: Identifying Engine Oil Sensor Level Performance Circuit Diagram & Connector Identification
G01861760Courtesy of DAIMLERCHRYSLER CORP.
