Engine Controls - Electrical Diagnostics
›
Circuit Tests
›
Engine Oil Sensor Performance
›
Circuit Diagram & Connector Identification
Circuit Diagram & Connector Identification

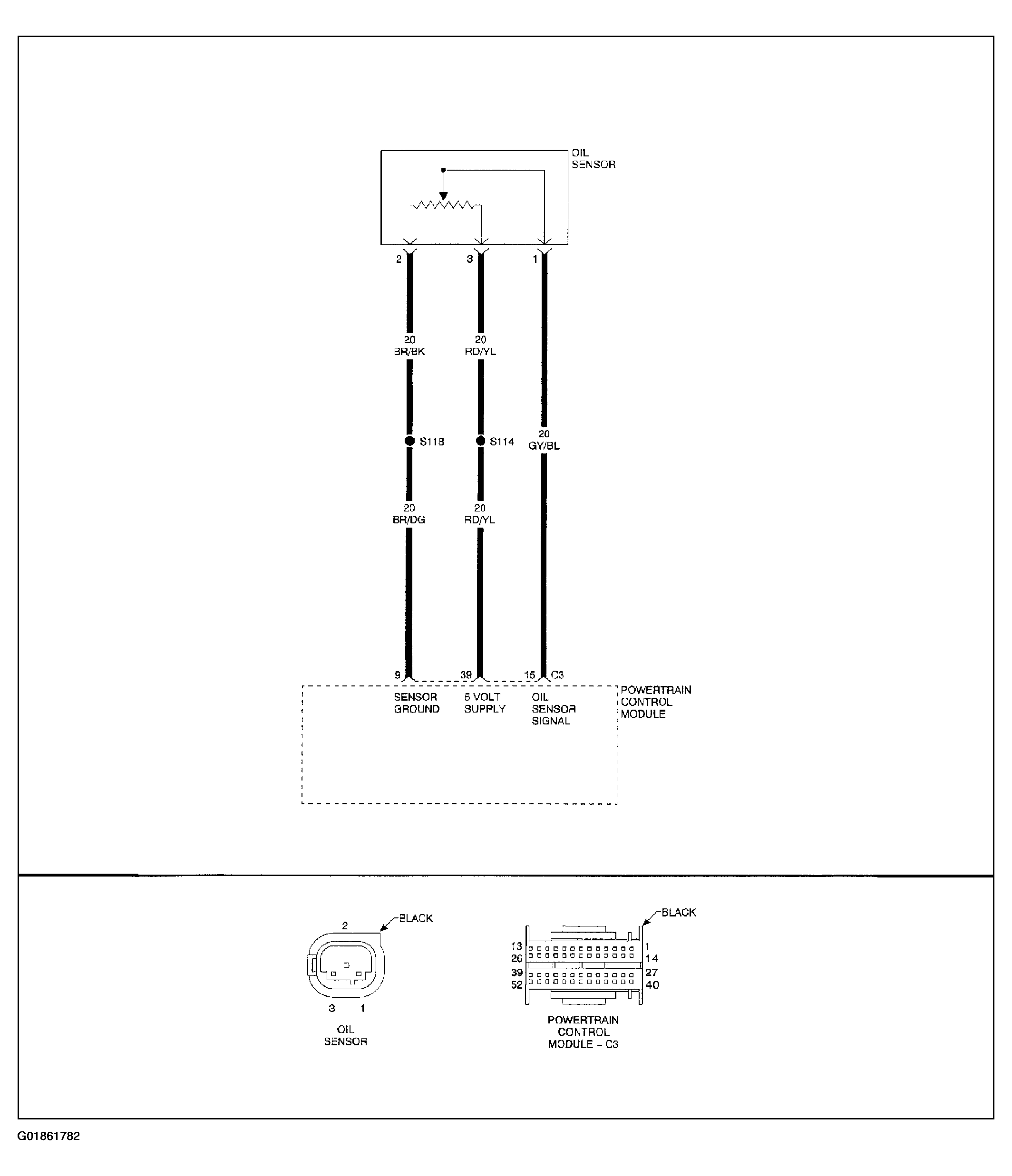

Fig 1: Identifying Engine Oil Sensor Performance Circuit Diagram & Connector Identification
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
