Crossfire Automatic
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Engine Controls - Electrical Diagnostics
›
Circuit Tests
›
Speed Control Switch Input Circuit
›
Circuit Diagram & Connector Identification
Circuit Diagram & Connector Identification

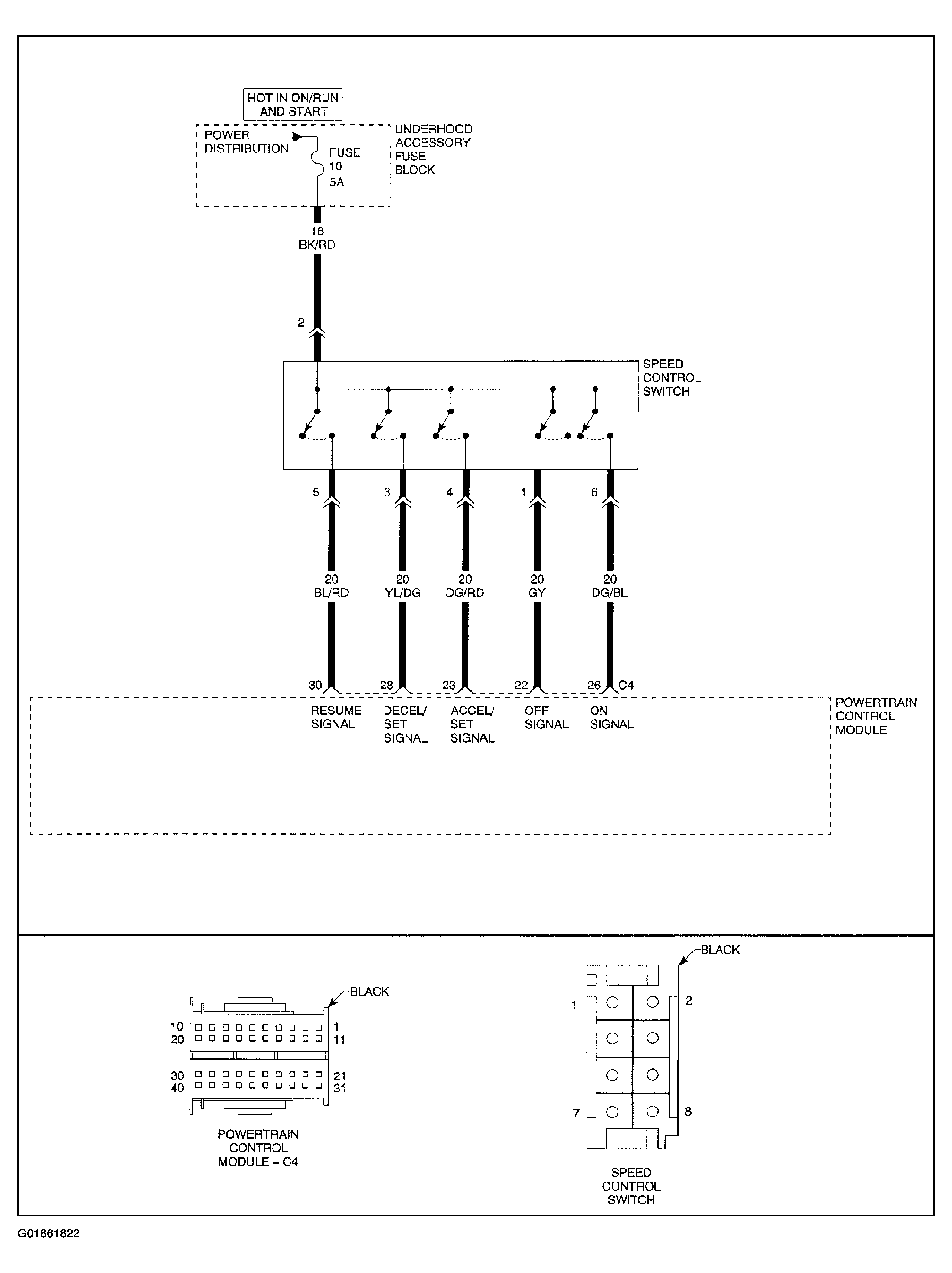

Fig 1: Identifying Speed Control Switch Input Circuit Diagram & Connector Identification
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
