DTC P0141: O2 Sensor 1/2 Heater Performance
›
Circuit Diagram & Connector Identification
Circuit Diagram & Connector Identification

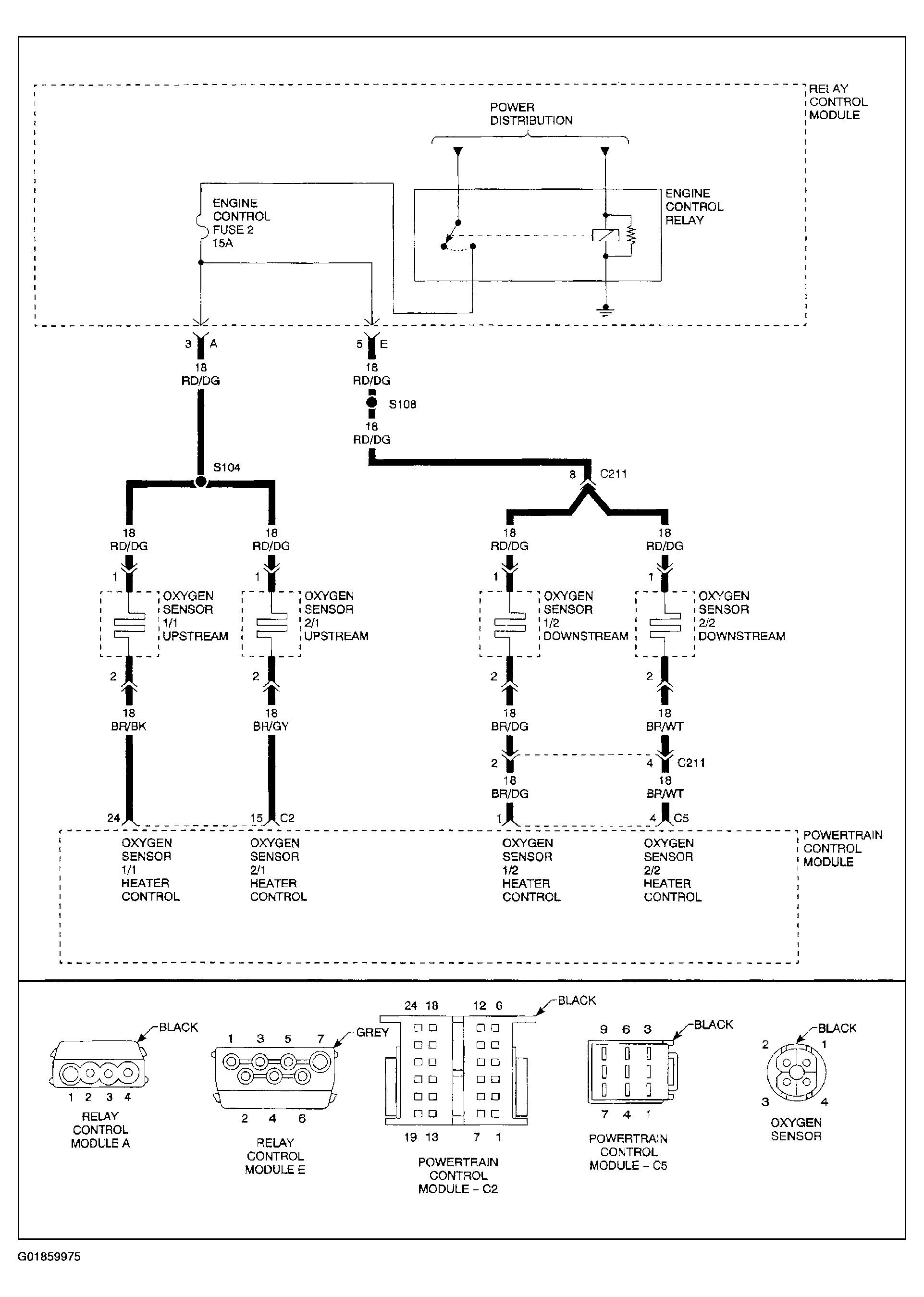

Fig 1: Identifying DTC P0141 Circuit Diagram & Connector Identification
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
