Inline Connector End View (C229)

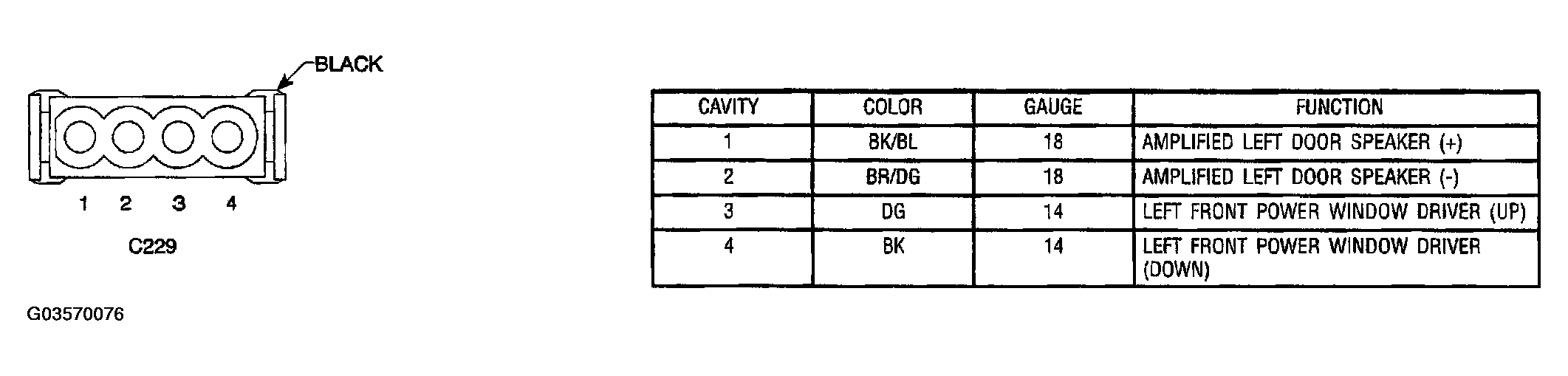

Fig 1: Inline Connector End View (C229)
G03570076Courtesy of DAIMLERCHRYSLER CORP.

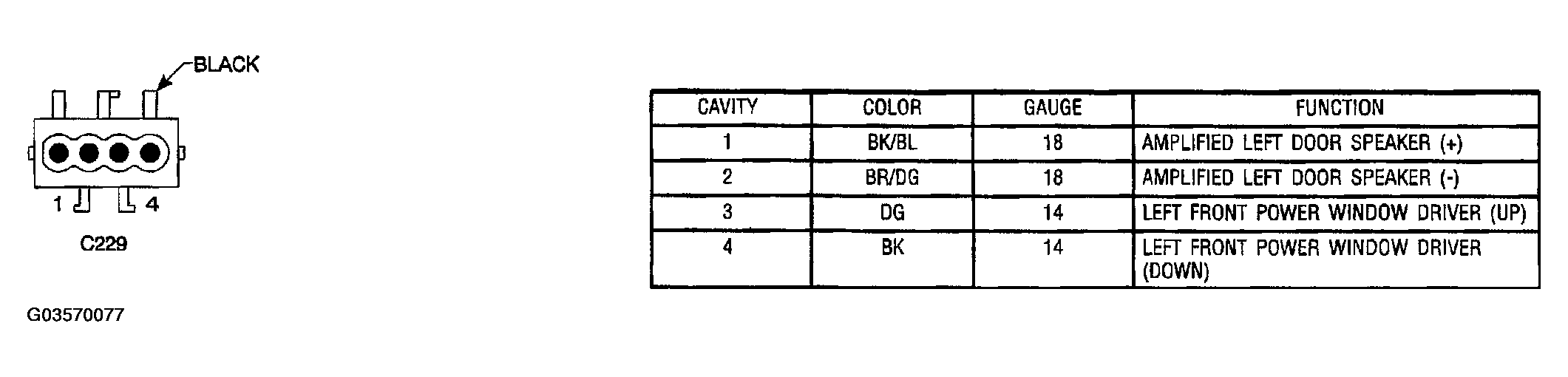

Fig 1: Inline Connector End View (C229)
G03570077Courtesy of DAIMLERCHRYSLER CORP.
