Left Power Mirror Connector End View
Left Power Mirror Connector End View

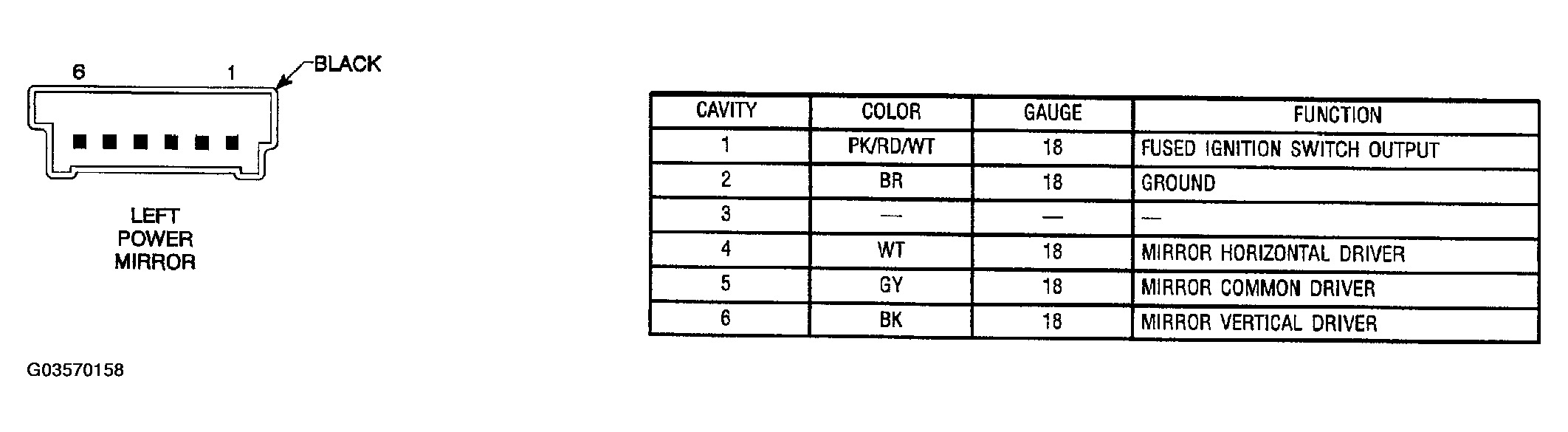

Fig 1: Left Power Mirror Connector End View
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
