Occupant Restraint Controller Connector End View
Occupant Restraint Controller Connector End View

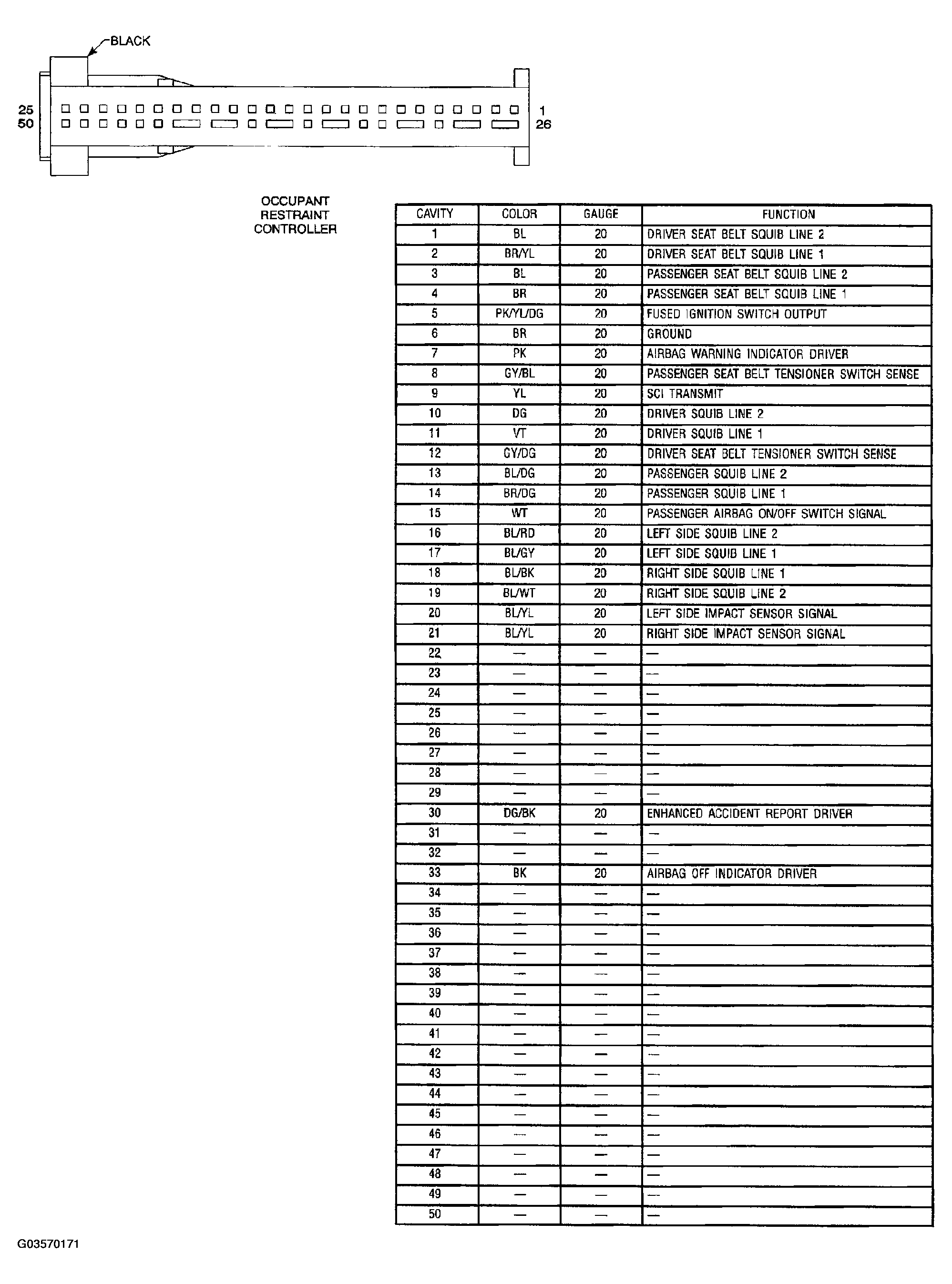

Fig 1: Occupant Restraint Controller Connector End View
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
