Right Front Power Window Motor Connector End View
Right Front Power Window Motor Connector End View

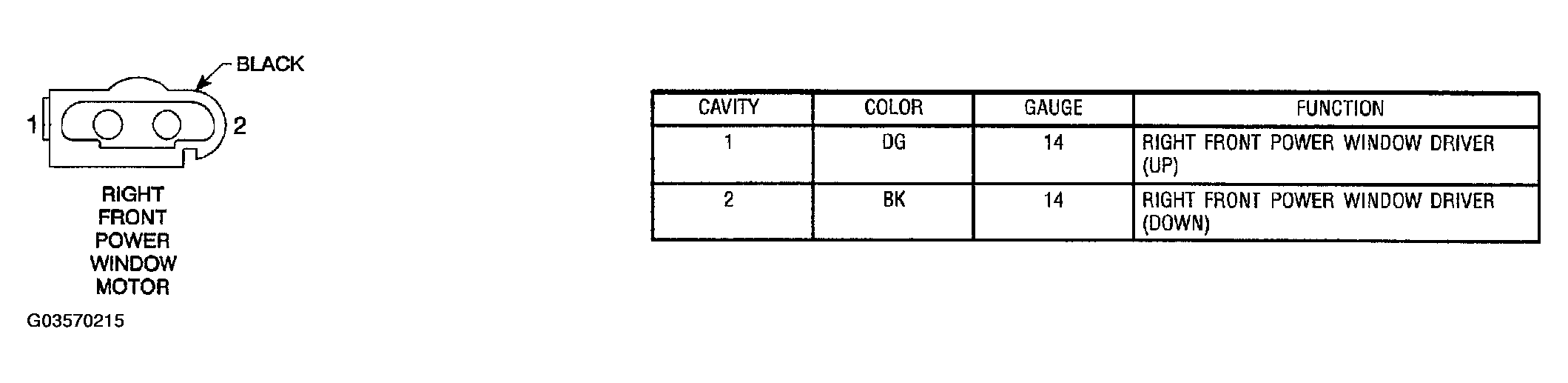

Fig 1: Right Front Power Window Motor Connector End View
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
