Drag Link: Installation

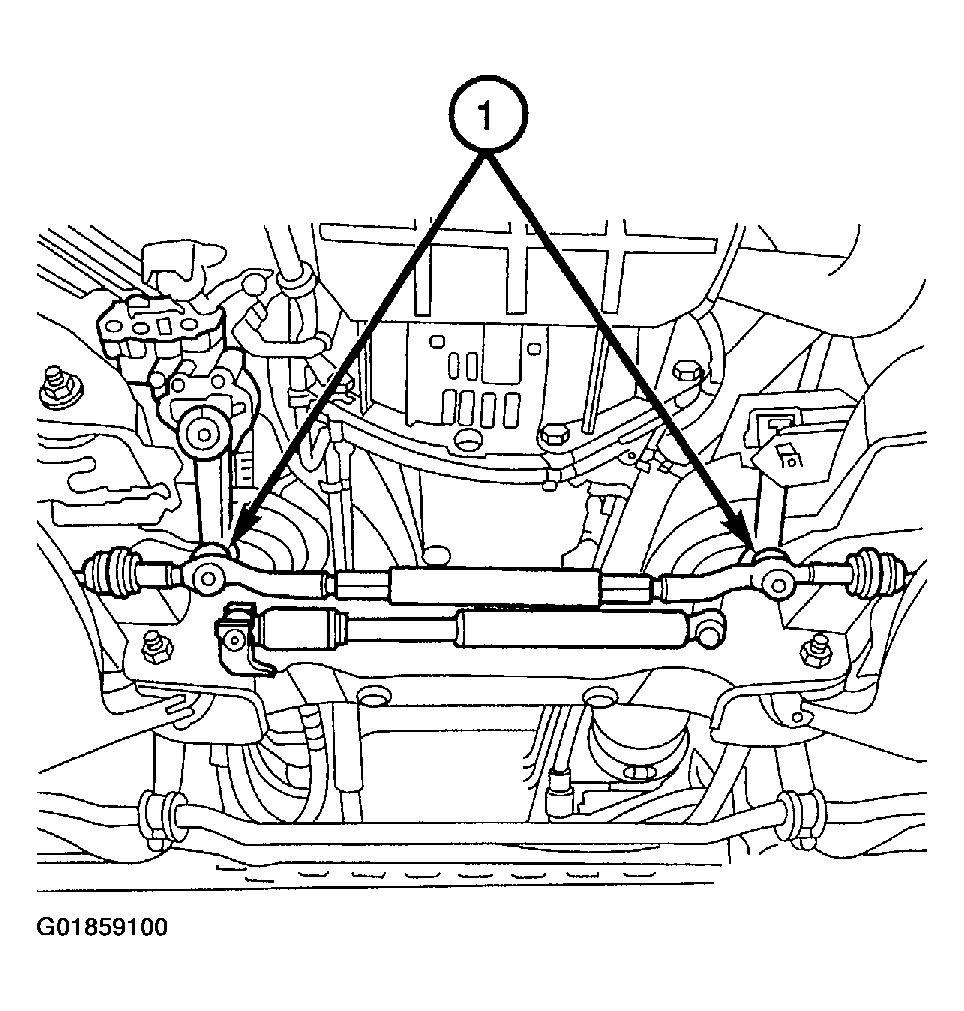

- Clean any grease or debris from the tie rod ends, and the drag link attaching points (1).
- Install the drag link and the attaching nuts (1) to the idler arm and pitman arm. Tighten the drag link nuts to 50 N.m (37 ft. lbs.).
Courtesy of DAIMLERCHRYSLER CORP.
- Install the tie rod ends into the steering knuckles.
- Install the nuts on the tie rod ends. Tighten to 50 N.m (37 ft. lbs.).
- Install the steering dampener. Tighten to 40 N.m. (29 ft. lbs.).
- Adjust the front toe setting on the vehicle. See SPECIFICATIONS & PROCEDURES
article.
