Rack & Pinion Power Steering System: Pump: Removal

  1. Remove the accessory drive belt (1). See COOLING SYSTEM (MECHANICAL) article.
  2. Remove the oil in the power steering reservoir (5).
  3. Remove the power steering supply line (6) from the reservoir.
  4. Remove the return hose from the power steering pump.
  5. Remove the high-pressure hose (2) from the power steering pump.
  6. Remove the power steering pump by removing the two bolts (3) attaching it to the engine block.
  7. Remove the reservoir if necessary, by pressing out the c-clip (4) using a suitable tool.

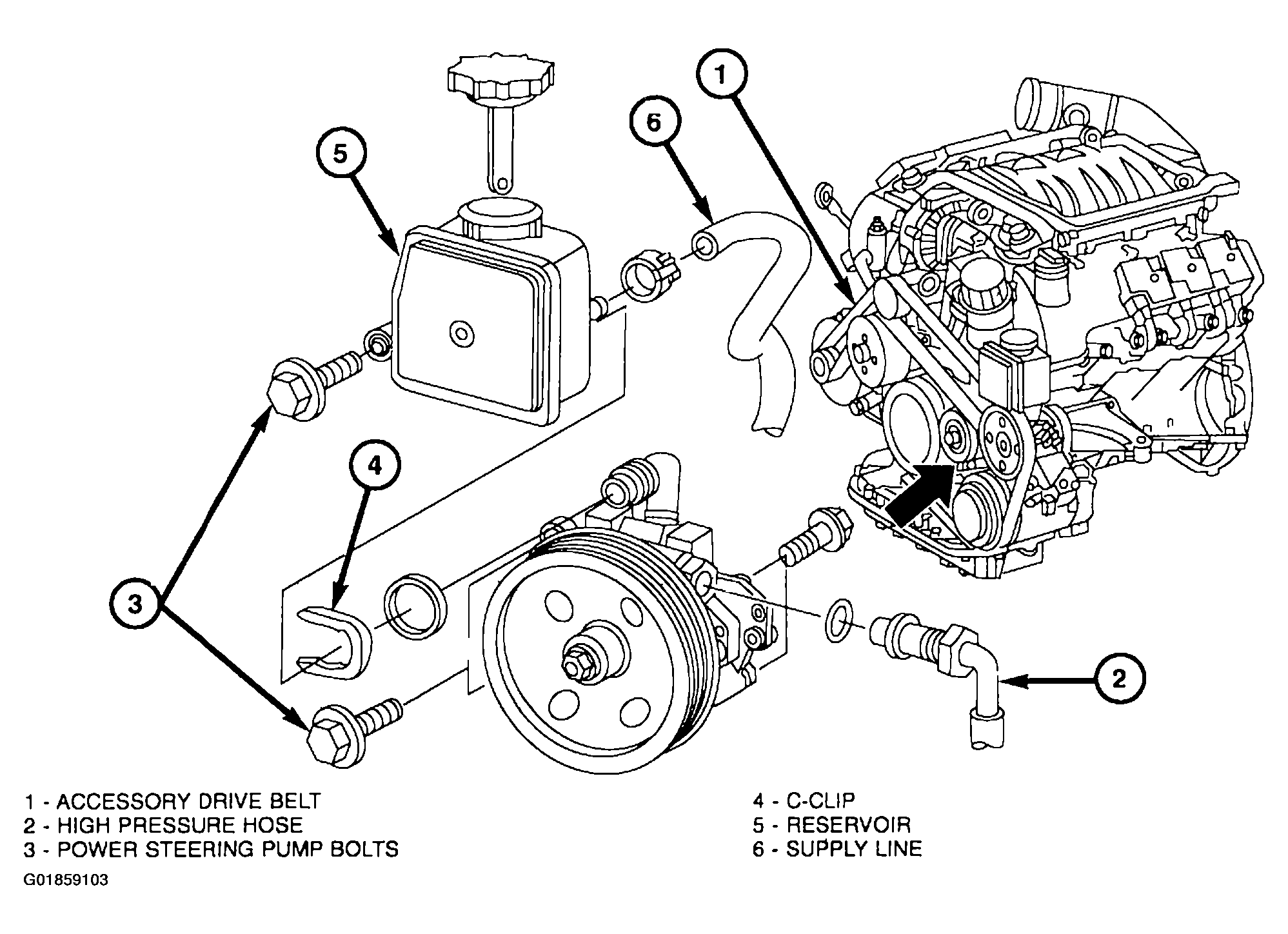

    Fig 1: Removing Power Steering Pump
    G01859103Courtesy of DAIMLERCHRYSLER CORP.
