Left Side Impact Sensor Connector End View
Left Side Impact Sensor Connector End View

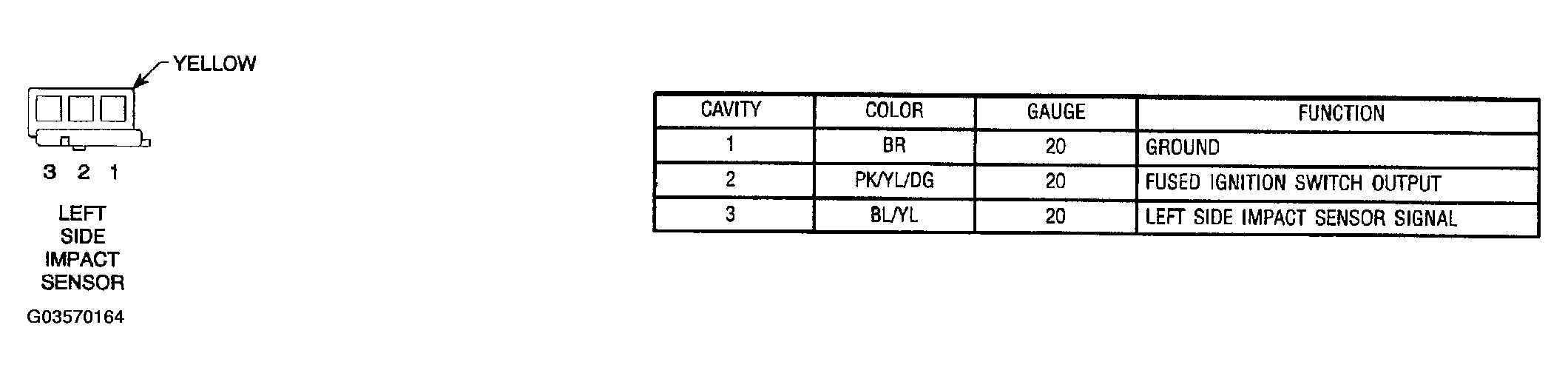

Fig 1: Left Side Impact Sensor Connector End View
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
