Illumination Control Module Connector End View (A)

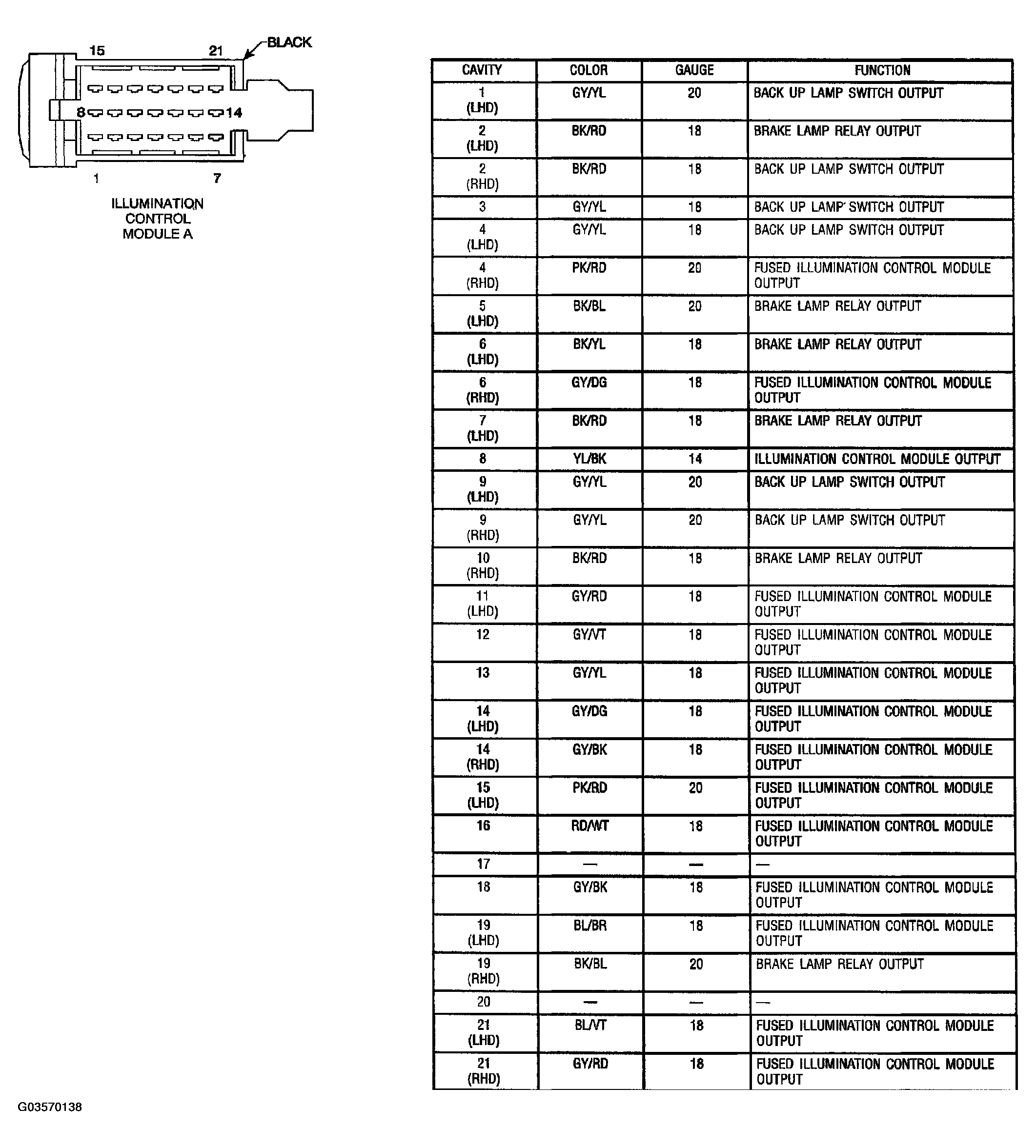

Fig 1: Illumination Control Module Connector End View (A)
G03570138Courtesy of DAIMLERCHRYSLER CORP.
