DTC P0221: Electronic Throttle Control Module Processor
›
Circuit Diagram & Connector Identification
Circuit Diagram & Connector Identification

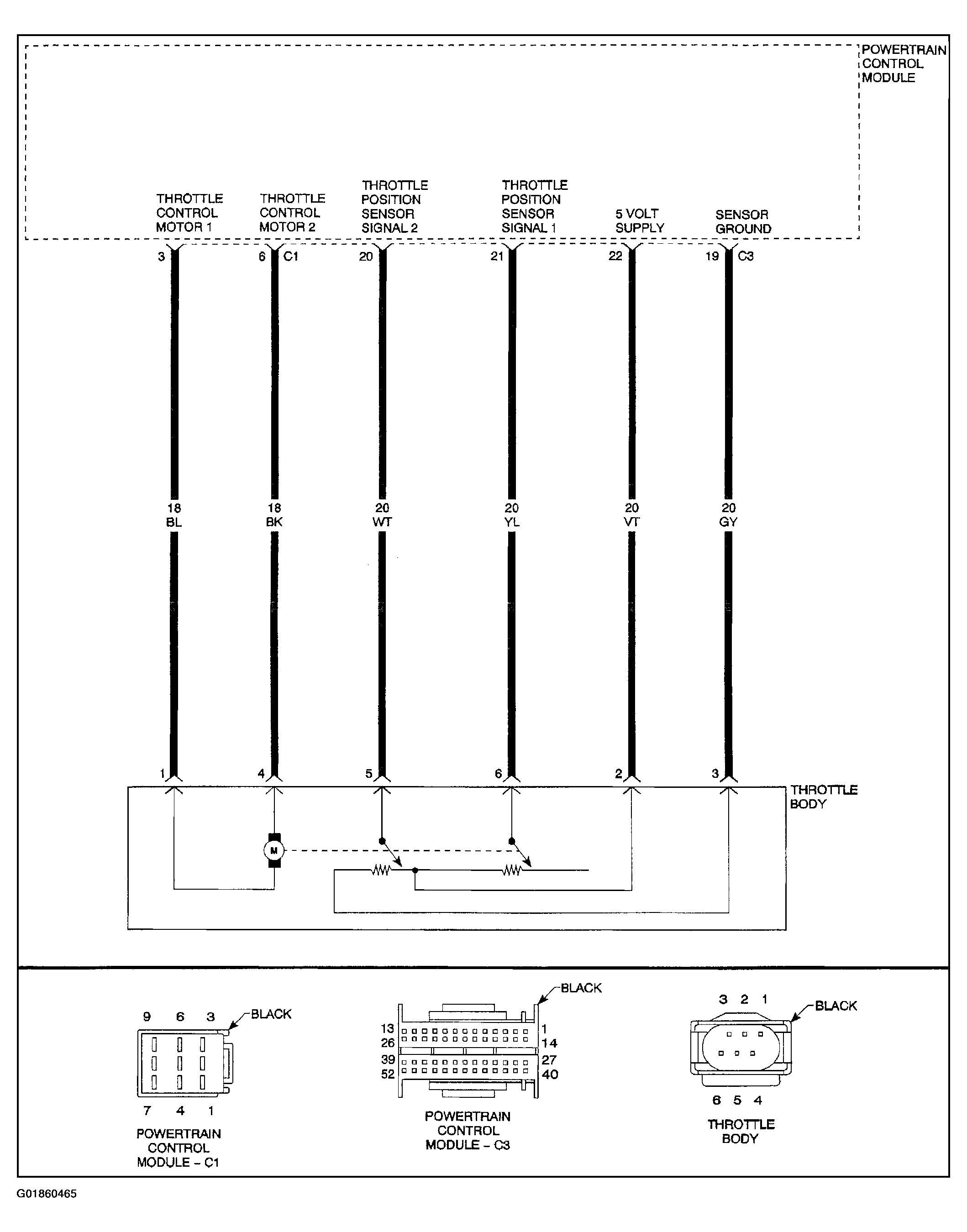

Fig 1: Identifying DTC P0221 Circuit Diagram & Connector Identification
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
