Central Locking Pump Module/ Security System Module Connector End View (C4)

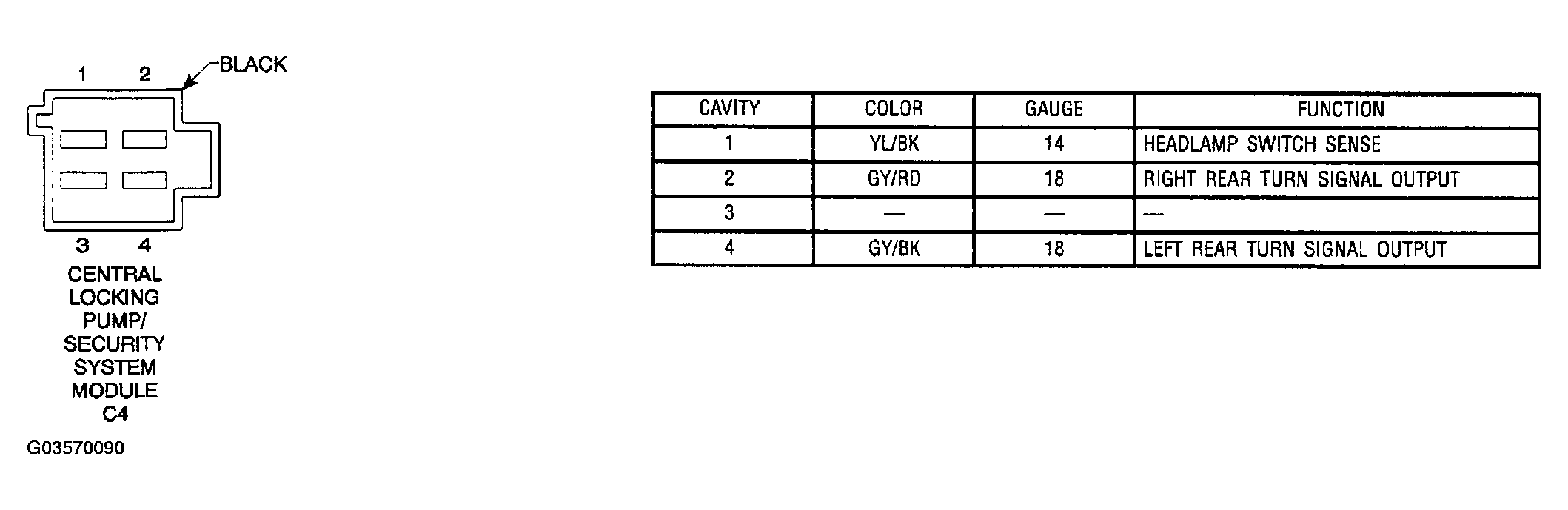

Fig 1: Central Locking Pump Module/ Security System Module Connector End View (C4)
G03570090Courtesy of DAIMLERCHRYSLER CORP.
