Illumination Control Module Connector End View (B)

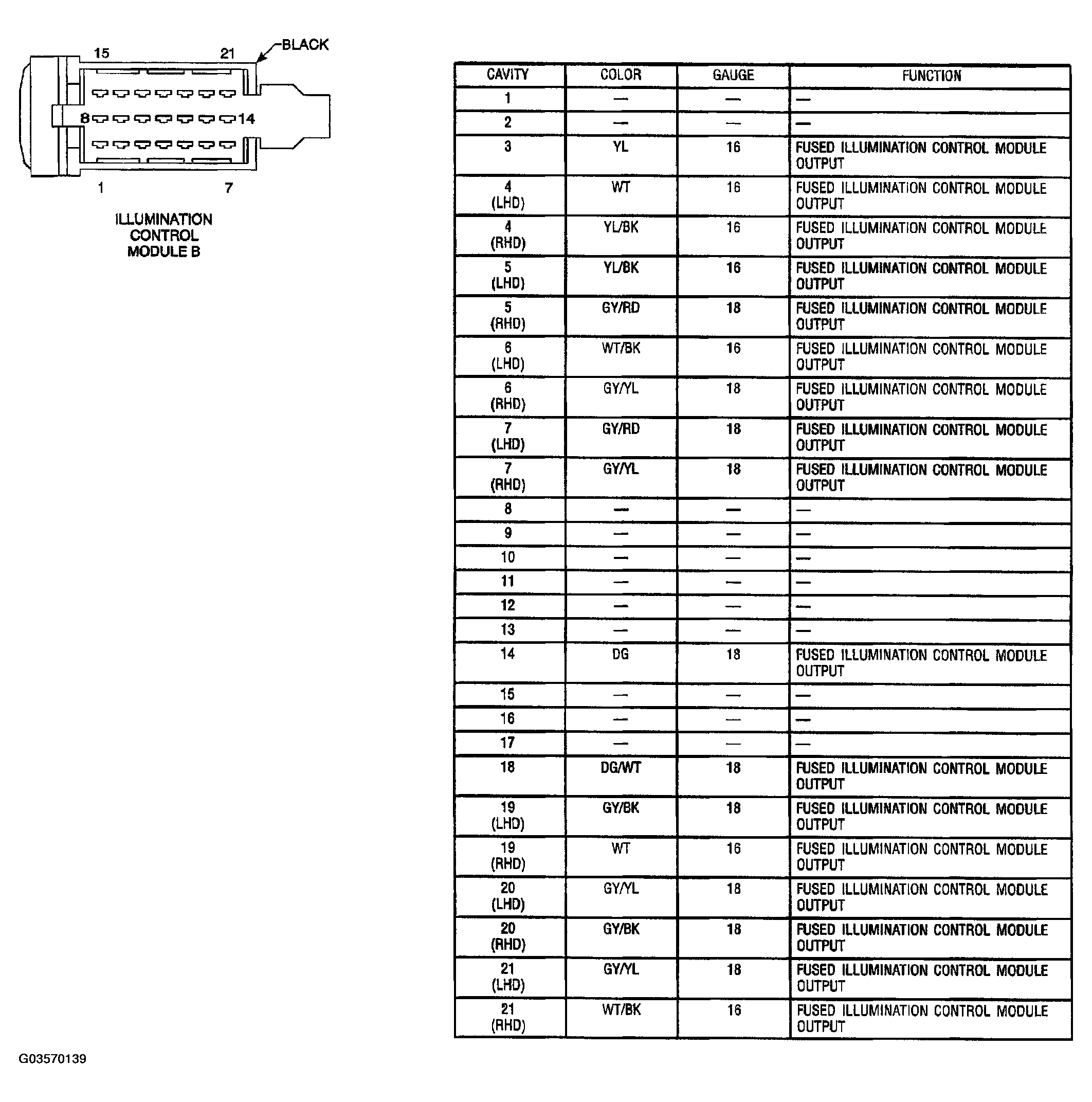

Fig 1: Illumination Control Module Connector End View (B)
G03570139Courtesy of DAIMLERCHRYSLER CORP.
