Transmission Control Module Connector End View (C2)

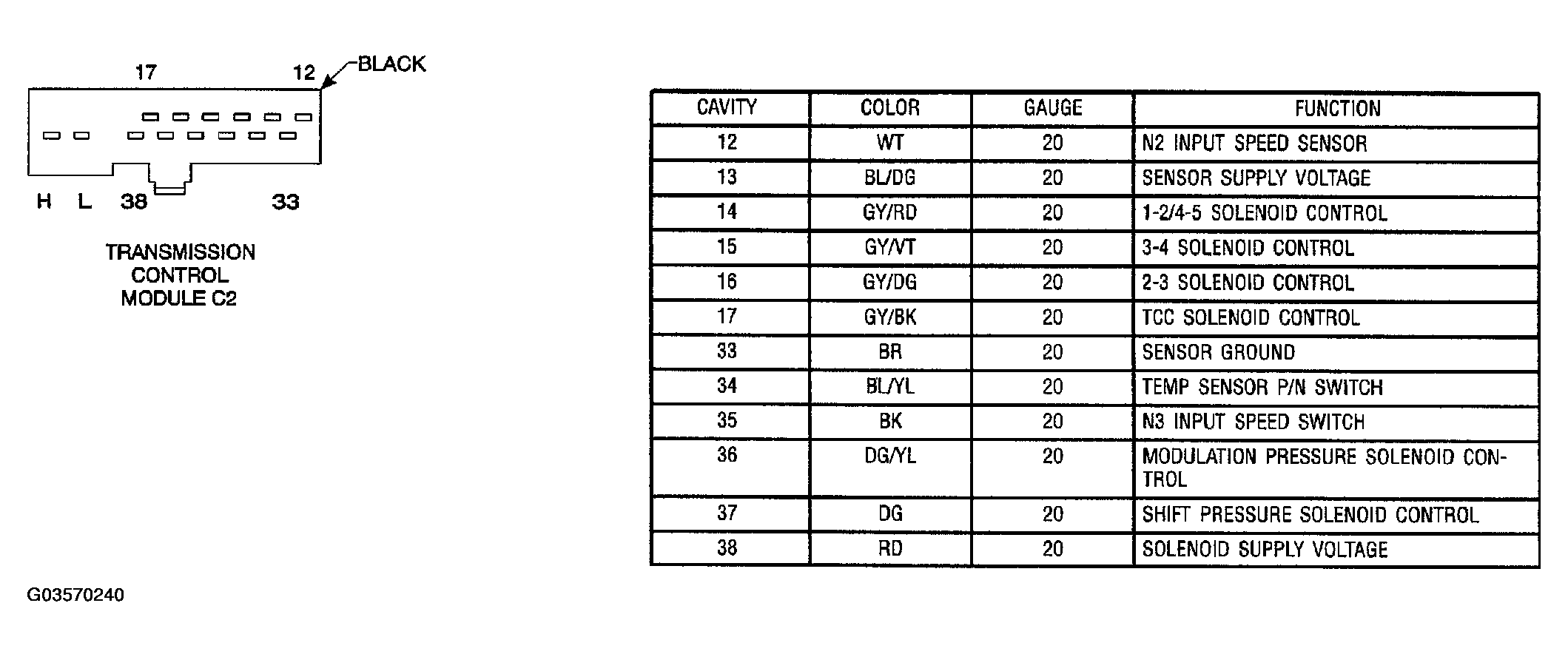

Fig 1: Transmission Control Module Connector End View (C2)
G03570240Courtesy of DAIMLERCHRYSLER CORP.
