Circuit Diagram & Connector Identification

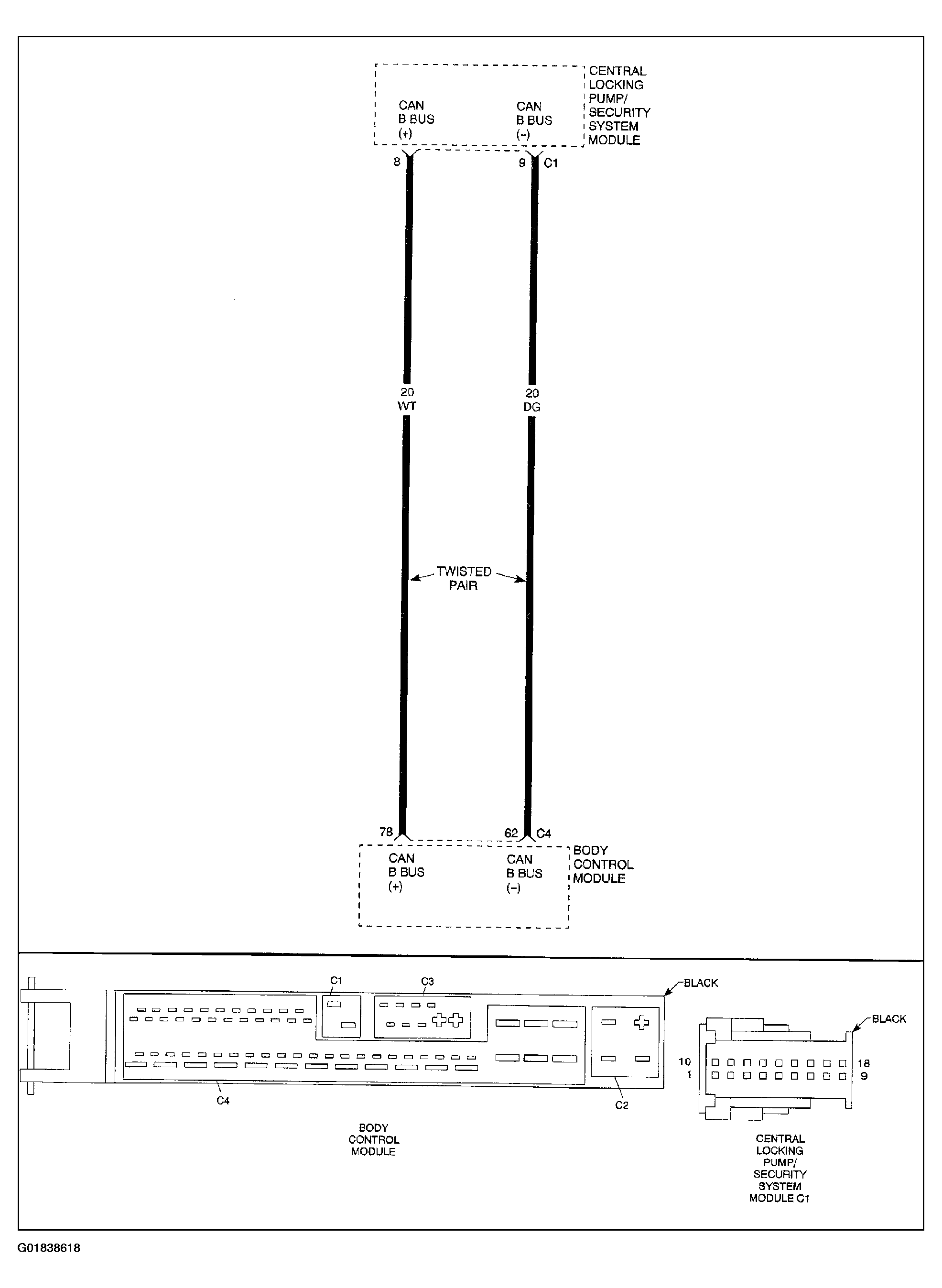

Fig 1: Identifying No Communication With Body Control Module & Central Locking Pump/Security System Module Circuit Diagram & Connector Identification
G01838618Courtesy of DAIMLERCHRYSLER CORP.
