Shift Lever Assembly Cover

  1. Remove the chrome plastic frame (1) with a plastic wedge.

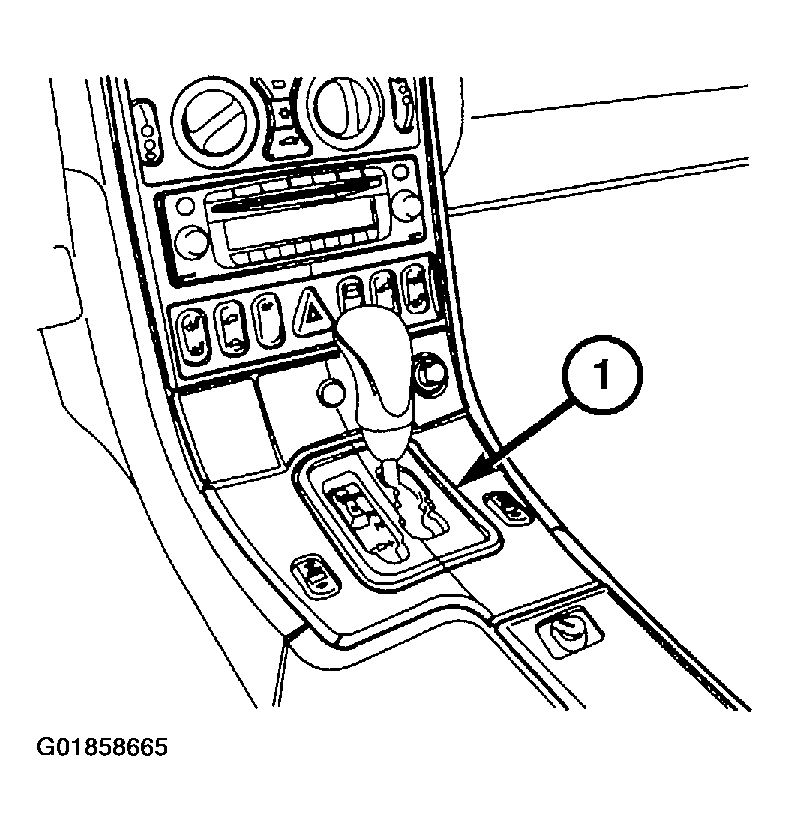

    Fig 1: Removing Chrome Plastic Frame
    G01858665Courtesy of DAIMLERCHRYSLER CORP.
  2. Press the cover (1) out of the catch in the center console at the rear and side with a plastic wedge.

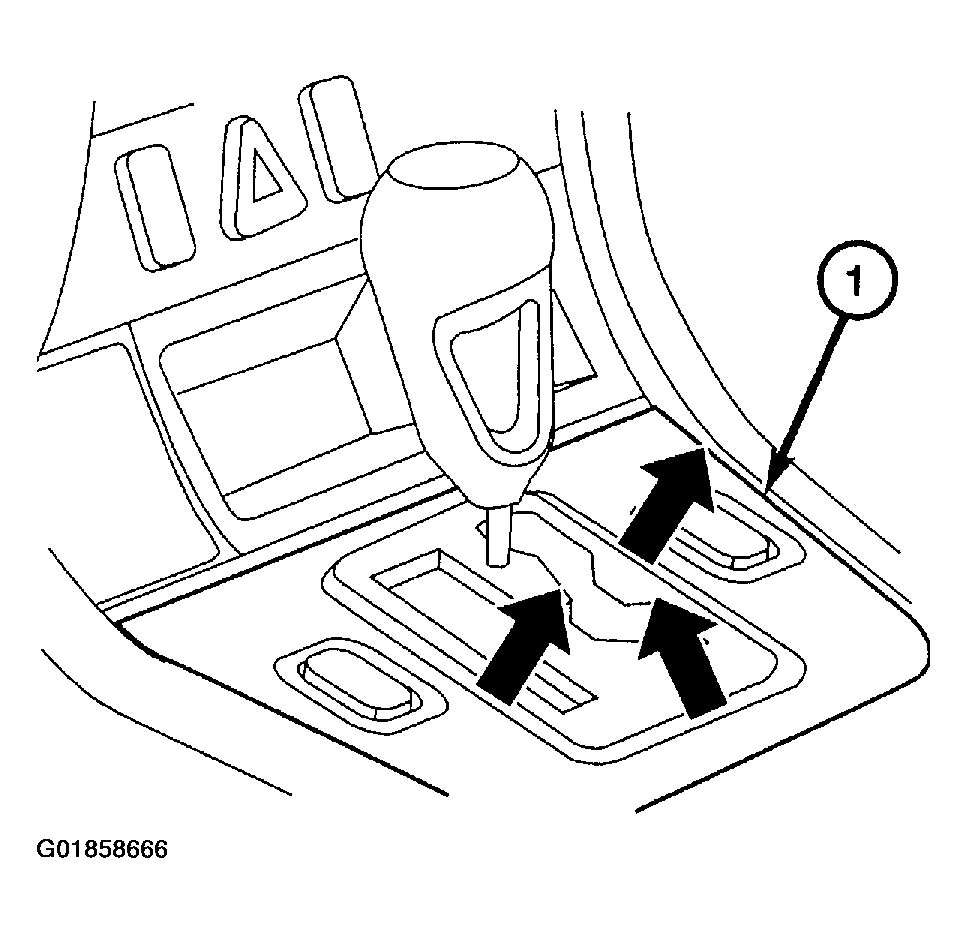

    Fig 2: Pressing Cover Out Of Catch In Center Console
    G01858666Courtesy of DAIMLERCHRYSLER CORP.
  3. Disconnect the electrical connectors (1) to the power window switches.

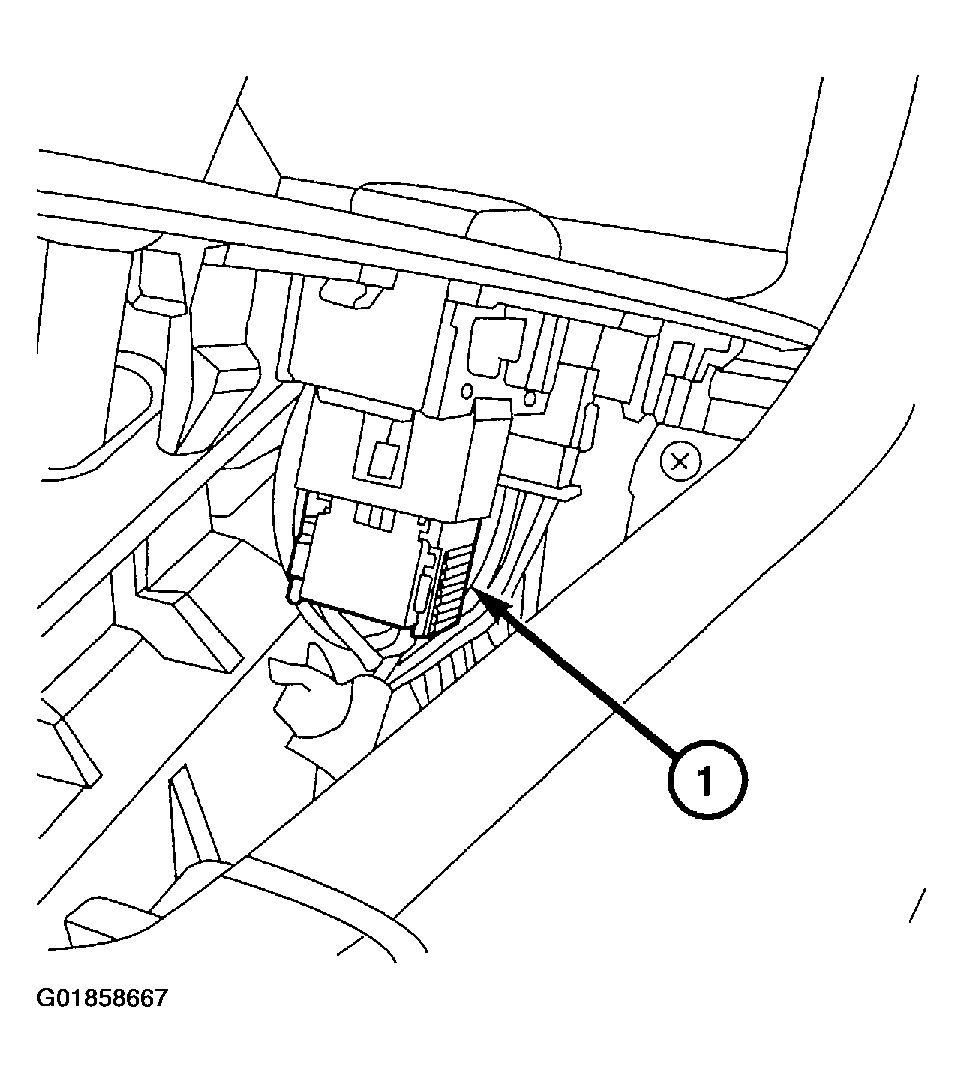

    Fig 3: Disconnecting Electrical Connectors To Power Window Switches
    G01858667Courtesy of DAIMLERCHRYSLER CORP.
