Schematics And Diagrams

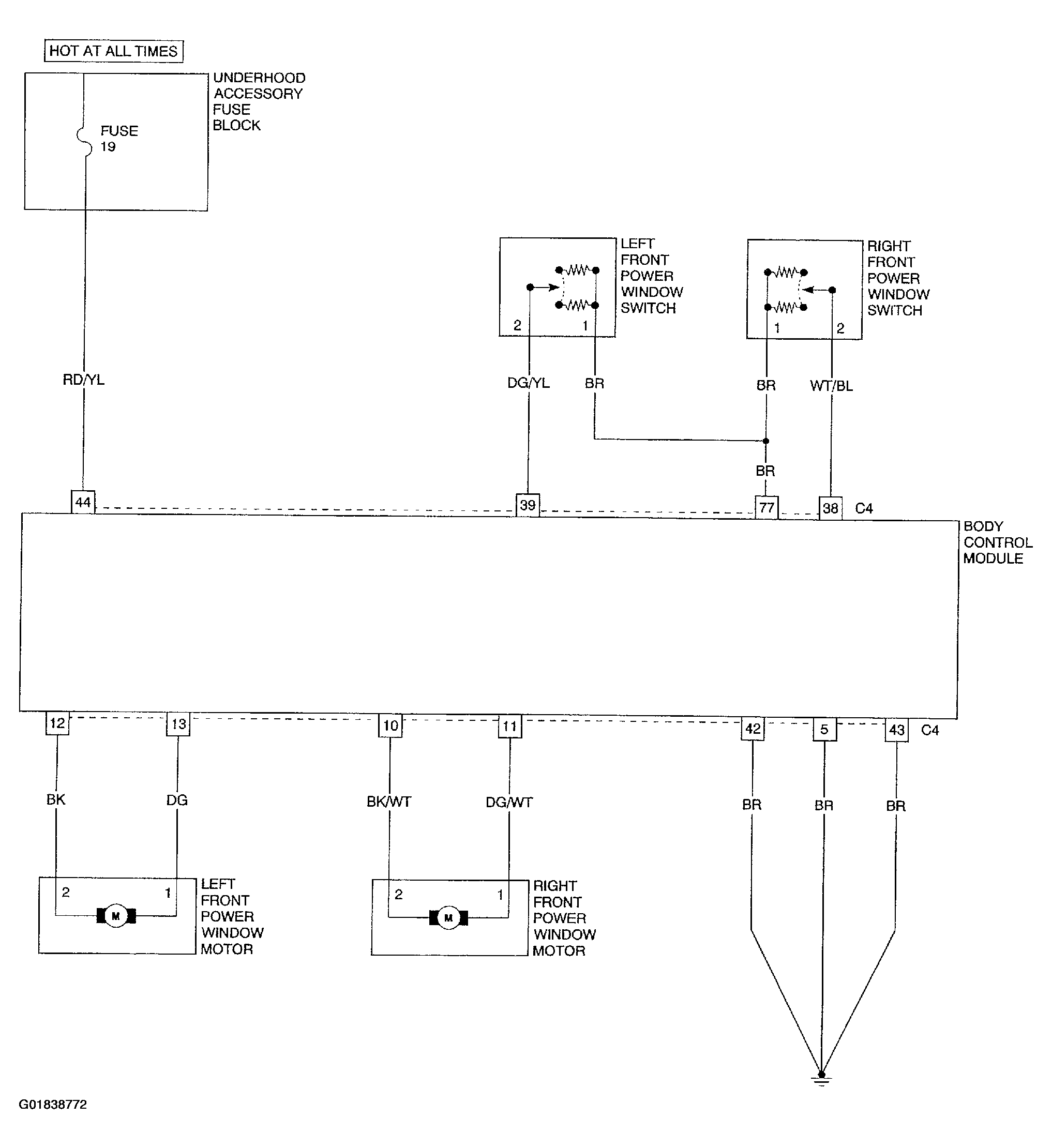

Fig 1: Identifying Power Windows Circuit Diagram
G01838772Courtesy of DAIMLERCHRYSLER CORP.
