Power Seat Track: Installation

NOTE: Ensure wire harnesses are routed and secured in their original position to avoid potential interference with moving parts.
  1. Position the power seat track assembly over the seat cushion and align the mounting points.
  2. Install the power seat track power harness connector (8).

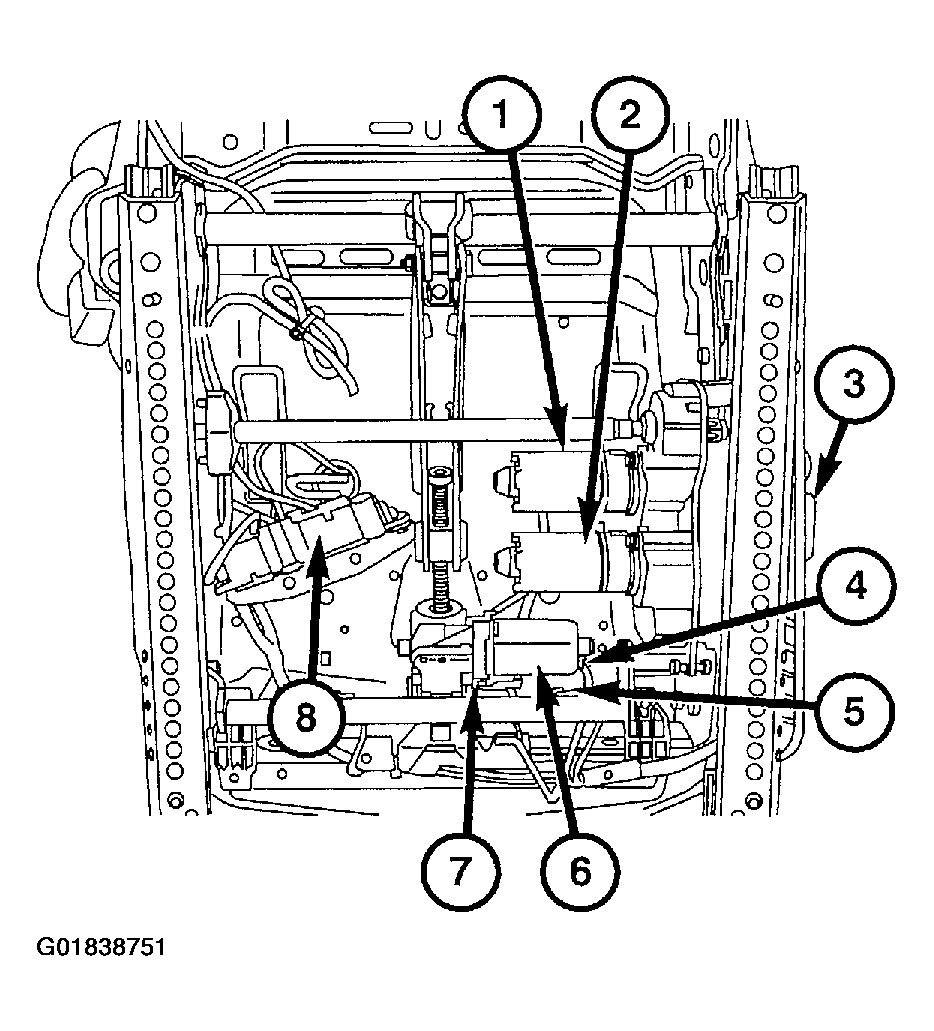

    Fig 1: Installing Power Seat Track Power Harness Connector
    G01838751Courtesy of DAIMLERCHRYSLER CORP.
  3. Install the power seat track front outboard attachment bolt (2).

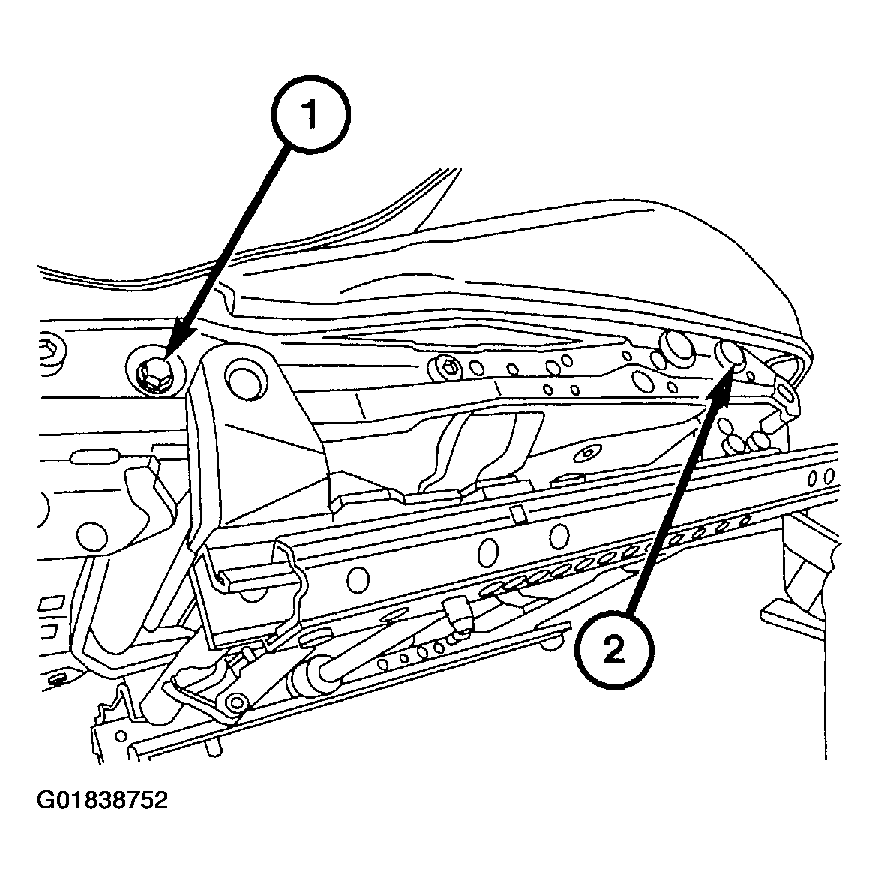

    Fig 2: Installing Power Seat Track Front Attaching Bolts
    G01838752Courtesy of DAIMLERCHRYSLER CORP.
  4. Tilt the rear of the track mechanism inward and install the power seat track rear outboard attachment bolt (1).
  5. Install the power seat switch assembly. See POWER SEAT SWITCH .
  6. Install the power seat track rear inboard attachment bolt (1).

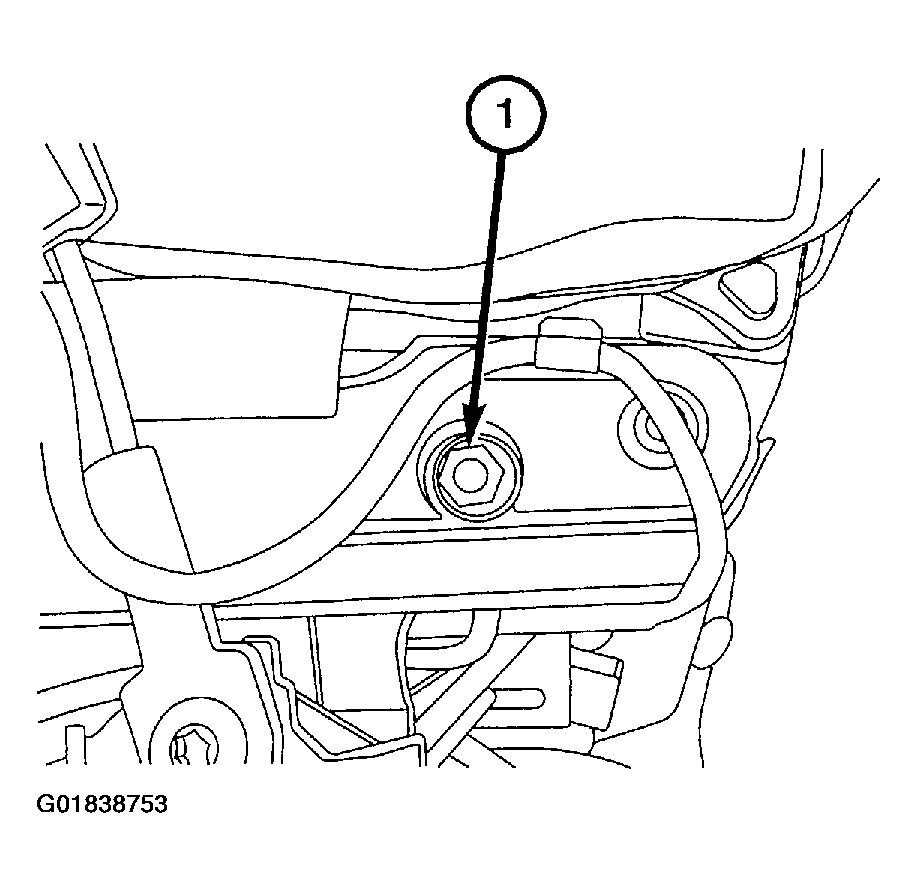

    Fig 3: Installing Power Seat Track Rear Inboard Attaching Bolts
    G01838753Courtesy of DAIMLERCHRYSLER CORP.
  7. Install the power seat track front inboard attachment bolt (1).
    Fig 4: Installing Power Seat Track Front Inboard Attachment Bolt
    G01838754Courtesy of DAIMLERCHRYSLER CORP.
  8. Install the front seat. See BODY article.
  9. Connect the negative battery cable.
