Rear Riser Motor: Installation

  1. Position the rear riser motor between the front and rear attachment brackets.
  2. Install the rear riser motor rear attachment bolt (1) and torque nut to 4 N.m (35 in. lbs.).
    Fig 1: Installing Rear Riser Motor Rear Attachment Bolt
    G01838738Courtesy of DAIMLERCHRYSLER CORP.
  3. Install the rear riser motor front attachment bolt (1) and torque nut to 4 N.m (35 in. lbs.).

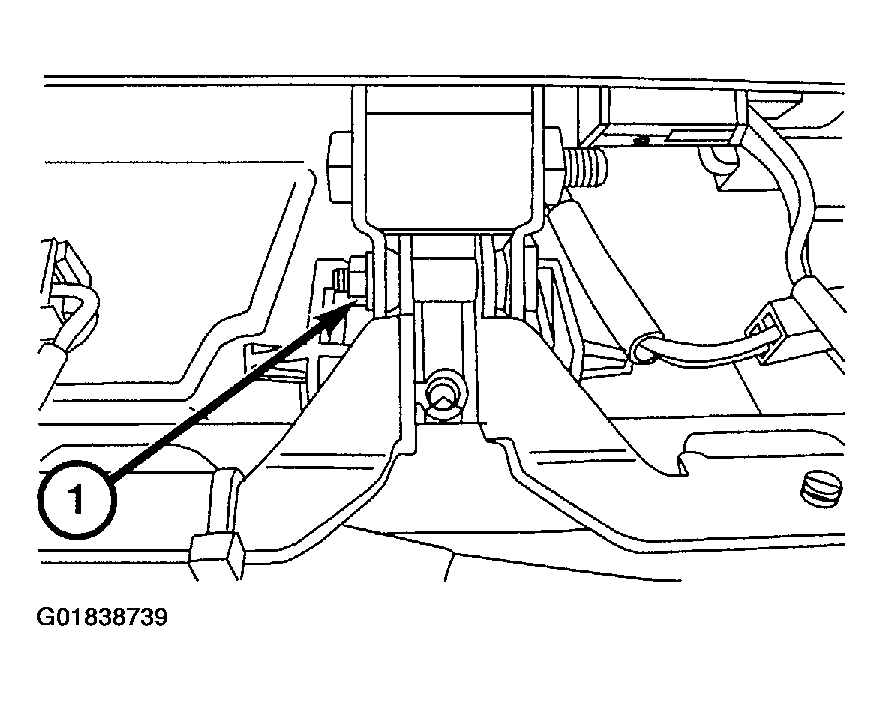

    Fig 2: Installing Rear Riser Motor Front Attachment Bolt
    G01838739Courtesy of DAIMLERCHRYSLER CORP.
    4. NOTE: Ensure the harness is routed and secured in its original position to avoid potential interference with moving parts.
  4. Connect the rear riser motor harness connector.
  5. Install the front seat. See BODY article.
  6. Connect the negative battery cable.
